TR 050A – diameter 6mm, up to 400°C

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed to measure the temperature of gaseous or solid substances.

The maximum temperature range of use of the sensors is 0 °C to 350 °C, 400 °C short-term. Used type of lead-in cable has glass fibre insulation and metal braiding, the sensors are not resistant to the penetration of moisture inside the case and are intended for use in dry conditions. The sensors are designed for use in a chemically non-aggressive environment. The method of use must be chosen for the temperature and chemical resistance of the case and lead-in cable.

Specification

Sensor type TR 050A
Measuring range 0 °C to 350 °C (400 °C short-term)
Type of sensing element* Pt 100, Pt 500, Pt 1000, TCK, TCJ
Ingress protection IP 50 in accordance with EN 60529, as amended
Case material stainless steel DIN 1.4301
Diameter of the case 6 + 0,1 mm
Length of case L 40, 60, 100 and 200 mm
Lead-in cable with glass fibre insulation and metal braiding 2 x 0.35 mm2
with glass fibre insulation and metal braiding 4 x 0.35 mm2
Wire resistance 0.11 Ω for 1 m of cable for 2-wire connection

Dimensional Draft

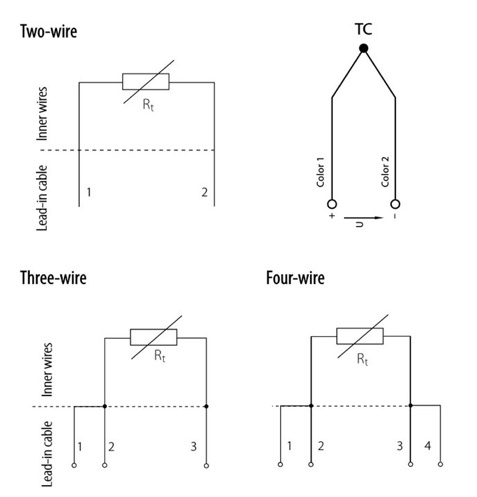

Wiring Diagram

Visit our downloads page to view technical characteristics or contact our technical sales department for more information, prices or with your specifications.
