Safety Thermostats

Carlton Thermal Systems Ltd are approved UK distributors and partners of UCHIYA Thermostat Co.

UCHIYA Thermostat Co. based in Japan and running production lines in Hong Kong and Ireland. They are specialized manufacturer of Thermostat, Thermal Protector and Thermal cut-outs for use in electrical appliances for the following industries:
  • Automotive
  • Scientific and Medical
  • Computing and telecoms
  • Aerospace
  • Transformer, actuators and Motor winding
  • Domestic Products / White Goods
Main advantages and characteristics are Quality, Safety and Flexibility:

Quality: Japanese design with manufacture in Europe and Asia in accordance with ISO 9001 and ISO 14001 standards and recognised by VDE, UL, C-UL and CQC.

Safety: Meeting the industry and market standards of the countries to which they deliver, operating a company-wide policy of providing safety to society with our products and services (OHSAS 18001)

Flexibility: Produced in agreed volumes, delivered on-time and customised to meet customer appliance needs.
All UCHIYA products undergone a rigorous research and development process and are market-tested as well as RoHS and REACH compliant. Each product is 100% tested.

UCHIYA can provide a certificate of conformance for each shipment upon request.

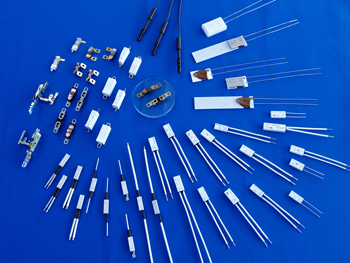

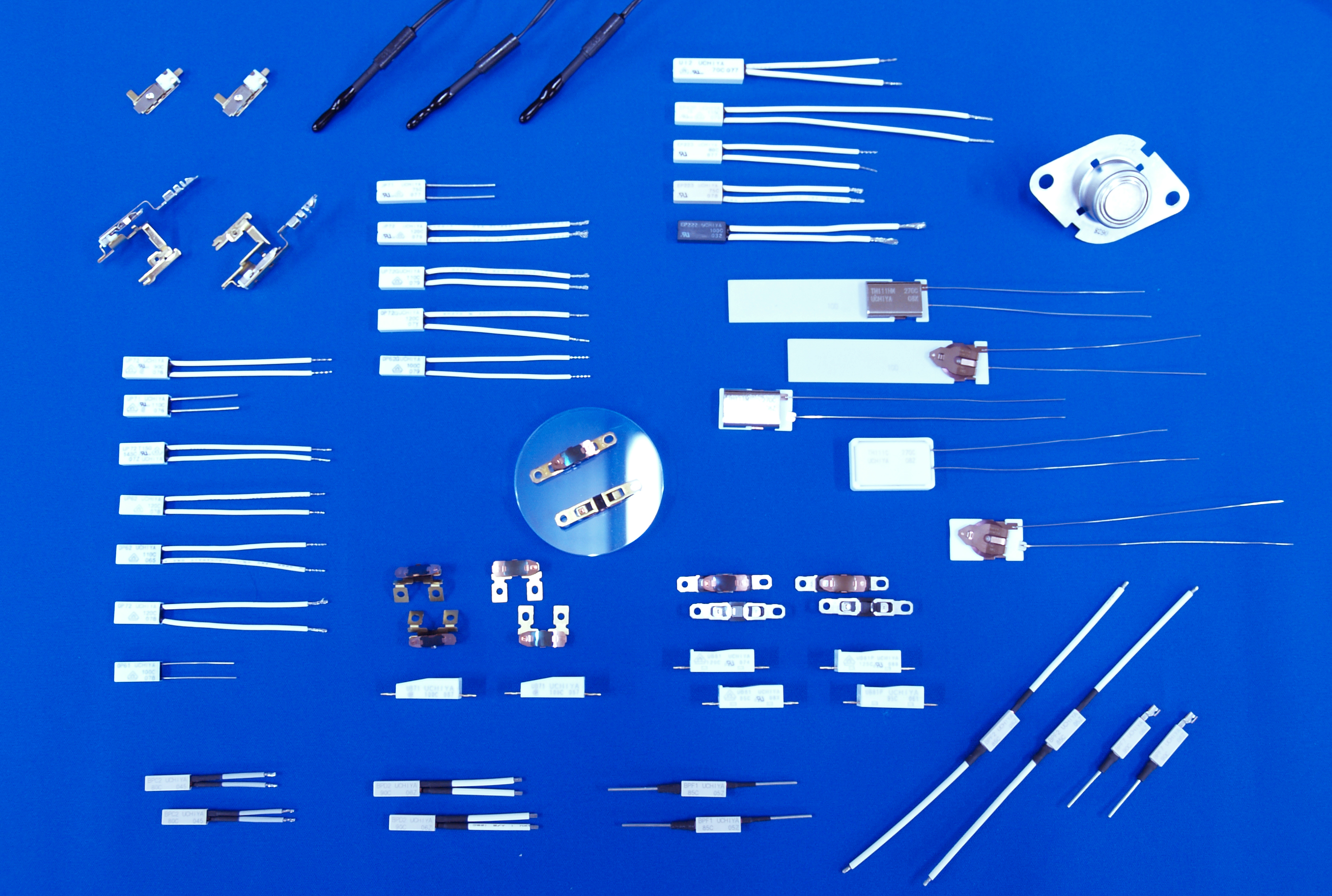

UCHIYA Safety Thermostats for Electrical Appliances:

Model/TypeContact ratingsCoverNormally ON/OFFNotes
UB7Hair Dryers, Hair Brushes, Fan Heaters, Dish Dryers, etc.
UB713A 125V AC8A 250V ACOPENON
UB7613A 125V AC8A 250V ACOPENON
UB7713A 125V AC8A 250V ACOPENON
UB8Heavy duty Hair Dryers, Fan Heaters, Blenders, Dish Dryers, Food Processors, etc.
UB825A 125V AC13A 250V ACOPENON
UB8125A 125V AC13A 250V ACDUST-PROOON
UB8P25A 125V AC13A 250V ACOPENONSelf-Holding Type (*1)
UB81P25A 125V AC13A 250V ACDUST-PROOFONSelf-Holding Type (*1)
UP6Small motor, Transformers, Switching Power Supply, Inverter Ballast, Projectors, Electronic Circuit Boards, etc.
UP64A 125V AC2.5A 250V ACSEALEDON
UP6G1A 125V AC0.5A 250V ACSEALEDONPGS Contact (*2)
OP64A 125V AC2.5A 250V ACSEALEDOFF
OP6G1A 125V AC0.5A 250V ACSEALEDOFFPGS Contact (*2)
UP7Small motor, Transformers, Switching Power Supply, Lighting Fixtures, etc.
UP74A 125V AC2.5A 250V ACSEALEDONMotor Protector
UP7G1A 125V AC0.5A 250V ACSEALEDONPGS Contact (*2)
OP74A 125V AC2.5A 250V ACSEALEDOFF
OP7G1A 125V AC0.5A 250V ACSEALEDOFFPGS Contact (*2)

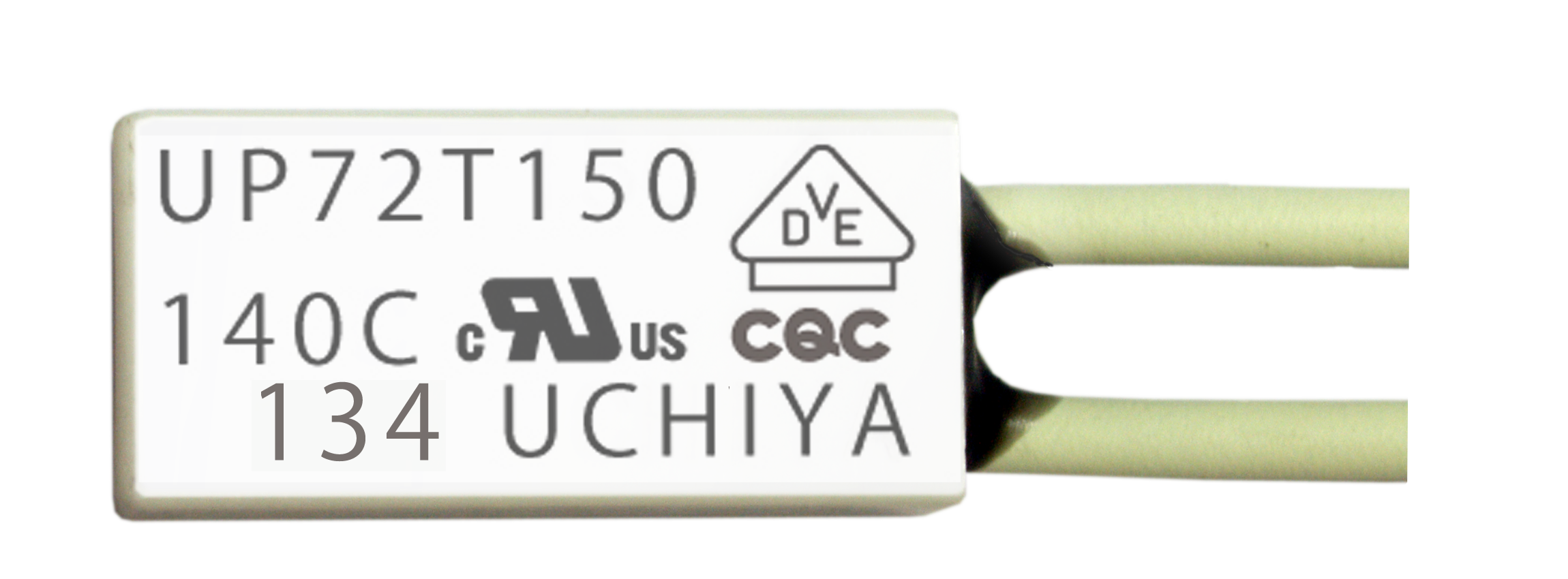

UP72T1504A 125V AC2.5A 250V ACSEALEDONMotor Protector
BPLithium-ion Battery Pack, NIMH Battery Pack, NiCd Battery Pack, DC Small motor, etc.
BP C6A 18V DC SEALEDON
BP D10A 18V DC SEALEDON
BP F15A 18V DC SEALEDON
JPMotor Transformers, Solenoids, Lighting Fixtures, Heating Appliance, Ceramic Resistors, Battery Chargers, Projectors, Robots, etc.
JP78A 125V AC5A 250V ACSEALEDONMotor Protector
JP68A 125V AC5A 250V ACSEALEDON
EPPower Tools, Battery Packs, Small Motors, etc.
EP213A 26V DC SEALEDON
EP42PSmall Motors, Lighting Fixtures, Power Tools, Gardening Tools, Vending Machines, Industrial Machinery
EP42P (5A 250V AC)SEALEDONSelf-Holding Type (*1)
Motor Protector
UI2Cartridge Heaters, Steering Heaters, Small Motors, Projectors, etc.
UI1212A 125V AC10A 250V ACSEALEDONMotor Protector
THHome Care Appliances, Kitchen Appliances, Heaters, etc.
TH910M5A 125V AC5A 250V ACSEALEDONSOD (*3)
Notes
(*1) Contact OFF position self-holding type
(*2) PGS(Platinum, Gold, Silver Alloy) cross-bar contacts for micro current
(*3) SOD (Single Operation Device) non-reset type
Visit our downloads page to view technical characteristics or contact our technical sales department for more information, prices or with your specifications.

Also, you can reach us on +44 (0) 1865400514
