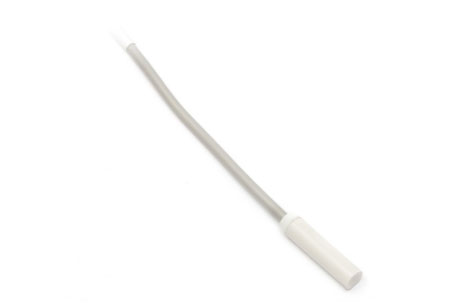

Temperature sensors TR 152 in the plastic case are intended for temperature measurements of gaseous, eventually liquid materials. For long-lasting temperature measurements (especially at the temperatures over 90 °C) there is better to use the sensor with thermowell-combination. The sensors have always plastic polyamide case in which the temperature sensing element is located.

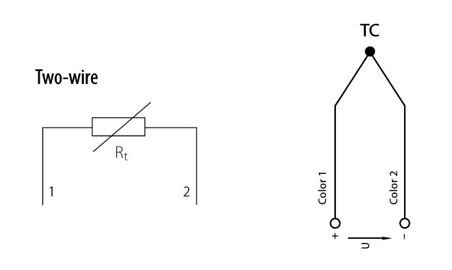

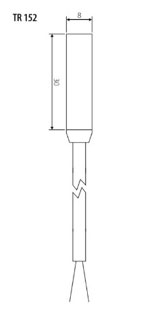

The diameter of the case TR 152 is 8 mm. All types of thin layer resistance-type sensing elements made by company SENSIT s.r.o. can be used. The wiring of the sensors is always 2-wire.
Material of the case has medium resistivity to atmospheric aging, it resists oils, fuels, hydraulic liquids, alifatic and aromatic hydrocarbons, esters, ketons and slight alcalis. Material is not resistant to acids, strong alcalis and chlorinated hydrocarbons.
The diameter of the case TR 152 is 8 mm. All types of thin layer resistance-type sensing elements made by company SENSIT s.r.o. can be used. The wiring of the sensors is always 2-wire.
Material of the case has medium resistivity to atmospheric aging, it resists oils, fuels, hydraulic liquids, alifatic and aromatic hydrocarbons, esters, ketons and slight alcalis. Material is not resistant to acids, strong alcalis and chlorinated hydrocarbons.
