TR 011 – diameter from 6 to 10 mm, -50 °C to 200 °C

These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable are designed to measure the temperature of gaseous, liquid or solid substances. The maximum temperature range of use of the sensors is -50 to 200 °C. Used type of lead-in cable has silicone insulation or PVC insulation and is with shielding or without shielding. The sensors are primarily designed for measuring the temperature in pipelines. There structure enables quicker response to changes in temperature and can be used as a pressure device as defined in Government Resolution no. 26/2003 coll., as amended. the sensors are designed for use in a chemically non-aggressive environment. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

Temperature sensors TR 011 can be also supplied in special design for an explosive environment.


Sensor type TR 011
Measuring range -50 °C to 200 °C (can be limited by the sensing element, determine in documentation)
Type of sensing element* all types (Pt 100, Pt 1000, Ni 1000, Ni 10000,Ni 2226=T1, NTC, PTC, KTY, TSiC, DALLAS, thermocouple K, thermocouple J, thermocouple T and so on)
Ingress protection IP 67 in accordance with EN 60529, as amended
Thread / OK according to customer
Case material stainless steel DIN 1.4301
Diameter of case 6 to 10 mm
Length of case L 40 to 500 mm
Lead-in cable according to customer
Time response τ0.5 < 9 s (in flowing water 0.4 m.s-1)

*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types. Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

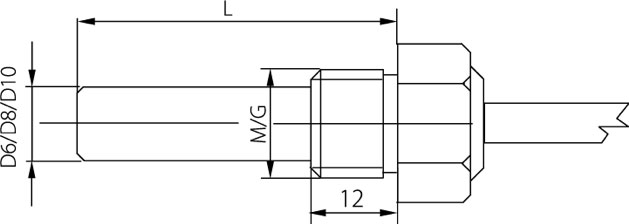

Dimensional Draft

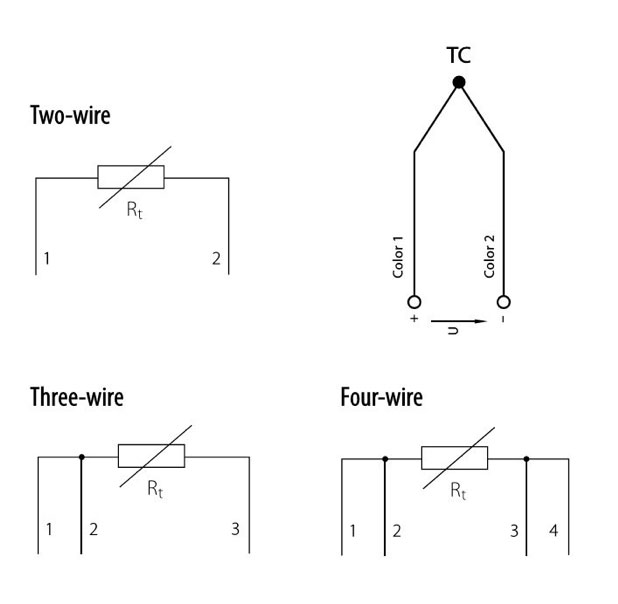

Wiring Diagram
