TR 096.0P – diameter 6 mm

Mineral insulated (MGO) resistance temperature sensors are designed for measuring the temperature of gaseous, liquid or solid substances. Their main advantage compared to the standard design of resistance temperature sensors is the possibility to form the shape of the sensor body.

The temperature range of the measuring end of the sensor is up to 600 °C, according to the temperature sensor design. These mineral insulated (MGO) resistance temperature sensors can be used for all control systems compatible with the type of sensing element stated in the table of technical parameters.
Mineral insulated (MGO) resistance temperature sensors meet the degree of protection of up to IP 67 according to EN 60529, as amended, depending on the type of lead in cable and production technology used. The diameter of the temperature sensor is 6 mm. Mineral insulated (MGO) resistance temperature sensors are designed for operation in chemically non-aggressive environments, the using must be chosen regarding temperature and chemical resistant housing and a cable.


Sensor type TR 096.0P
Sensing element Pt 100, Pt 500, Pt 1000
Ingress protection Up to IP 67 in accordance with EN 60529, as amended - acc. to type of the cable
Design Jacket resistance sensor
Diameter of measuring part 6 mm
Length of the measuring part from 20 to 300 mm as standard, others as requested
Maximal temperature range (on measuring tip) -50 °C to 600 °C (could be limited by length of the measuring tip or variant of lead-in cable)
Accuracy class class B standard (class A on request)
Jacket material stainless steel DIN1.4571
Body of sensor flexible, shapeable
Minimum bend radius 10time of diameter
Lead-in cable variations / Temperature range of the cable PVC shielded -30 °C to 80 °C
PVC unshielded -40 °C to 105 °C
silicone shielded -50 °C to 200 °C
Teflon shielded -50 °C to 250 °C
with fibreglass 0 °C to 400 °C (with metal braiding)

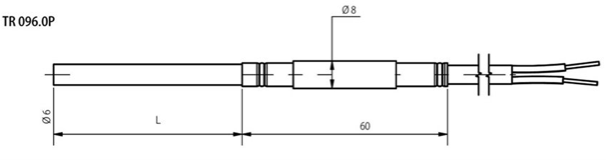

Dimensional Draft

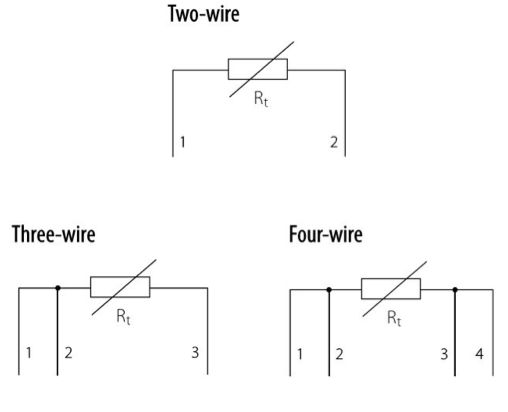

Wiring Diagram
