These resistance temperature sensors with a cable and thermocouple temperature sensors with a cable, are designed for measuring the surface temperature of solid substances with a flat and smooth surface. The maximum temperature range of use is 0 to 350 °C, 400 °C short-term. Used type of lead-in cable has glass fibre insulation and metal braiding, the sensors are not resistant against the penetration of moisture into the case and are designed for use in a dry environment. The sensors are designed for use in a chemically non-aggressive environment. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.
TR 141 and TR 141B – dural or stainless steel, 0 °C to 400 °C
- Home
- Products
- Sensors and Probes
- Temperature Sensors
- Temperature Sensors with Cable
- Contact Temperature Sensors
- TR 141 and TR 141B – dural or stainless steel, 0 °C to 400 °C

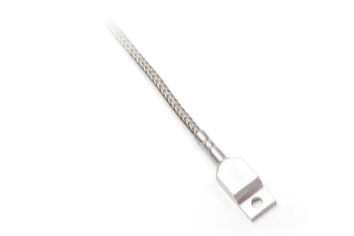

![TR-141-and-TR-141B](https://carltonthermal.com/wp-content/uploads/2021/01/TR-141-and-TR-141B.jpg)
Specification
Sensor type | TR 141 | TR 141B |
---|---|---|
Measuring range | 0 to 350 °C (400 °C short-term) | |
Type of sensing element* | Pt 100, Pt 500, Pt 1000, TCK, TCJ | |
Ingress protection | IP 50 in accordance with EN 60529, as amended | |
Case material | aluminium alloy | stainless steel DIN 1.4301 |
Length of case L | 40 mm | |
End sleeves | H 0.25 / 10 mm | |
Lead-in cable |
with glass fibre and metal braiding 2 x 0.35 mm2 with glass fibre and metal braiding 4 x 0.35 mm2 |
|
Wire resistance | 0.11 Ω for 1 m of cable for 2-wire connection | |
Maximum allowable cable tension | 1 kg | |
Recommendation | use thermal conductive paste for installation |
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

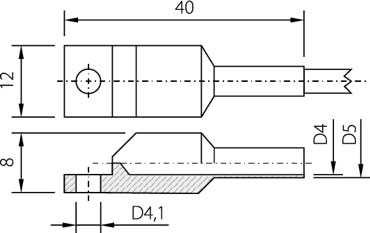

Dimensional Draft
![TR-141-and-TR-141B-Dimensional-Draft](https://carltonthermal.com/wp-content/uploads/2021/01/TR-141-and-TR-141B-Dimensional-Draft.jpg)

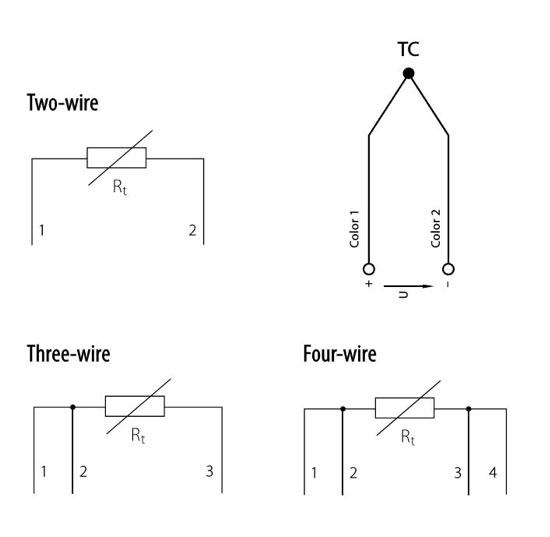

Wiring Diagram
![TR-141-and-TR-141B-Wiring-Diagram](https://carltonthermal.com/wp-content/uploads/2021/01/TR-141-and-TR-141B-Wiring-Diagram.jpg)
Visit our downloads page to view technical characteristics or contact our technical sales department for more information, prices or with your specifications.
