- Contact Temperature Sensor with Cable – brass -50 °C to 130 °C
These resistance-type sensors are intended for contact surface temperature measurement. the sensors, which are available including the fastening strap are suitable for temperature measurements on piping. The sensor dimensions make it possible to place the sensor even under the pipe insulation. The standard operating temperature range is -50 to 130 °C. The sensing element is constructed to be isolated from the ambient influence. The sensors can be utilised for any control systems that are compatible with sensing element output signals or output signals quoted in the table of sensing element types.
The sensors are designed to be operated in a chemically non-aggressive environment.
The sensors are designed to be operated in a chemically non-aggressive environment.
Specification
Sensor type | Type of sensing element | Maximum measuring DC current | Measuring range |
---|---|---|---|
NS 150A | Ni 1000/5000 | 1 mA | -50 to 130 °C |
NS 151A | Ni 1000/6180 | 1 mA | |
NS 152A | Ni 891 | 1 mA | |
NS 350A | Ni 10000/5000 | 0.3 mA | |
NS 351A | Ni 10000/6180 | 0.3 mA | |
NS 153A | T1 = Ni 2226 | 0.7 mA | -50 to 130 °C |
PTS 150A | Pt 100/3850 | 3 mA | |
PTS 250A | Pt 500/3850 | 1.5 mA | |
PTS 350A | Pt 1000/3850 | 1 mA | |
HS 150A | thermistor NTC 20 kΩ | 10 mW *) |
*) maximum power consumption
Note: x = version A or version B
Others Parametrs | |
---|---|
Accuracy class |
Ni sensing elements: B class, Δt = ± (0.4 + 0.007t), for t ≥ 0; Δt = ± (0.4 + 0.028|t|), for t ≤ 0 in °C Pt sensing elements: B according to EN 60751, Δt = ± (0.3 + 0.005|t|) in °C NTC 20 kΩ: ± 1 °C for the range 0 to 70 °C |
Sensor connection | according to the wiring diagram |
Time response | sensor type S150A τ0.5 ≤ 10 s, τ0.9 ≤ 45 s (on the smooth surface without paste) |
Insulation resistance | > 200 MΩ at 500 VDC, 25 ± 3 °C; humidity < 85 % |
Ingress protection | IP 65 in accordance with EN 60529 |
Material of the case | brass |
Lead-in cable |
shielded silicone 2 x 0.22 mm2 shielded silicone 4 x 0.15 mm2 |
Standard length of the cable | 2, 5, 10 m |
Material of the protection case | POLYAMIDE type S150A |
Standard length of the strap | 40 cm |
Minimum diameter of a pipe | 20 mm |
Operating conditions |
|
Weight | approximately 0.15 kg |
*) The temperature sensor´s measurement error is dependent on the influence of ambient temperature, environmental variables and the characteristics of the measured surface (error of method).
**) It is recommended to apply heat-conducting paste or silicon grease to the measured surface, which will ensure faster response time and minimise the measurement error of the contact temperature sensor.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your deale

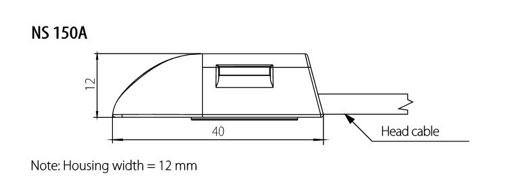

Dimensional Draft

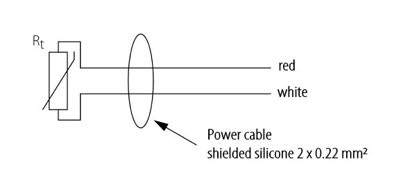

Wiring Diagram
