The temperature sensors are designed to be operated in a chemically non-aggressive environment.

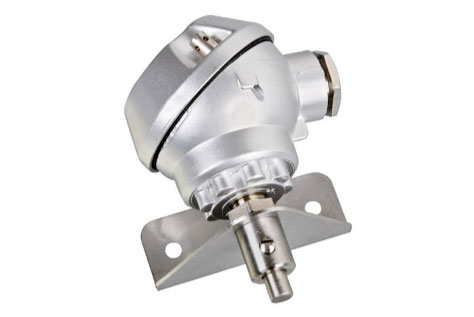

With a Metal Connection Head
These resistance-type temperature sensors are intended for contact temperature measurement of gaseous substances. The standard temperature range in which the sensors can be utilised is -30 °C to 100 °C. The sensors can be utilised for any control systems that are compatible with sensing element output signals or output signals quoted in the table of sensing element types.
The temperature sensors are designed to be operated in a chemically non-aggressive environment.
The temperature sensors are designed to be operated in a chemically non-aggressive environment.
Specification
Sensor type | Type of sensing element | Maximum measuring DC current | Measuring range |
---|---|---|---|
NK 110 | Ni 1000/5000 | 1 mANK 111 | -30 to 100°C |
NK 111 | Ni 1000/6180 | 1 mA | -30 to 100°C |
NK 112 | Ni 891 | 1 mA | -30 to 100°C |
NK 310 | Ni 10000/5000 | 0,3 mA | -30 to 100°C |
NK 311 | Ni 10000/6180 | 0,3 mA | -30 to 100°C |
NK 113 | T1 = Ni 226 | 0.7 mA | -30 to 100°C |
PTK 110 | PT 100/3850 | 3 mA | -30 to 100°C |
PTK 210 | PT 500/3850 | 1.5 mA | -30 to 100°C |
PTK 310 | PT 1000/3850 | 1 mA | -30 to 100°C |
HK 110 | termistor NTC 20 kΩ | 0.3 mW *) | -30 to 100°C |
Sensor type | NK 510 | Note |
---|---|---|
Type of sensing element | Pt 1000/3850 | |
Output | 4 to 20 mA | |
Standard measuring ranges |
-30 to 60°C 0 to 35 °C 0 to 100 °C 0 to 150 °C |
ambient temperature around the connection head -30 to 70 °C |
Measuring error | ± 1 °C based on air flow speed | |
Voltage supply (U) | 11 to 30 V DC | recommended value 24 V DC |
Load resistance Rs |
150 Ω for power supply 12 VDC 700 Ω for power supply 24 VDC |
|
Output signal - sensing elements break | > 24 mA | |
Output signal - sensing element short circuit | < 3.5 mA |
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.
Others Parametrs | |
---|---|
Accuracy class |
Ni sensing elements: B class, t = ± (0.4 + 0.007t), for t ≥ 0; t = ± (0.4 + 0.028|t|), for t ≤ 0 in °C; Pt sensing elements: B class according EN 60751, t = ± (0.3 + 0.005|t|) in °C NTC 20 kΩ: ± 1 °C for the range 0 to 70 °C |
Sensors connection | according to the wiring diagram |
Standard length of the stem |
for resistance output: 25 mm for output 4 to 20 mA : 50 mm |
Time response | τ0.5 < 9 s (in air flow at 1m s-1) |
Recommended wire cross section | 0.35 to 1.5 mm2 |
Insulation resistance | > 200 MΩ at 500 V DC, 25° ± 3 °C; humidity < 85 % |
Ingress protection | IP 54 in accordance with EN 60529 |
Material of the stem | stainless steel DIN 1.4301 |
Type of connection head | LIMATHER MA |
Material of the connection head | aluminium alloy |
Operating conditions |
|
Weight | approximately 0.2 kg |
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

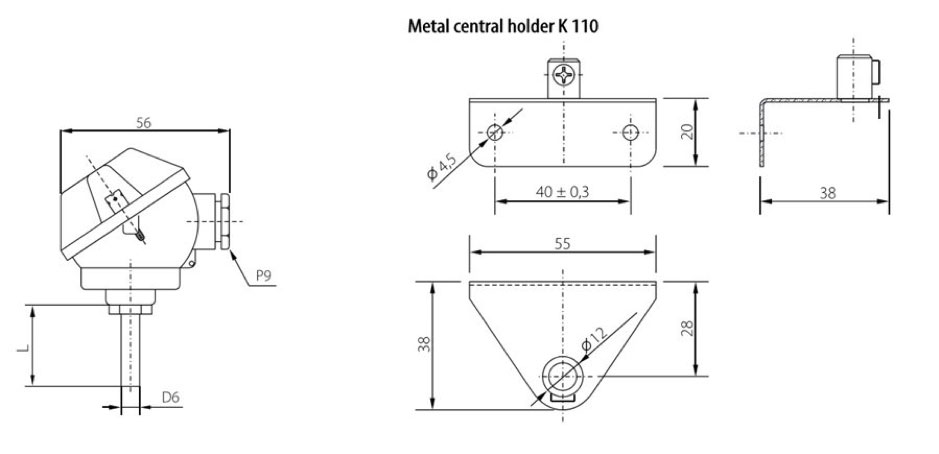

Dimensional Draft

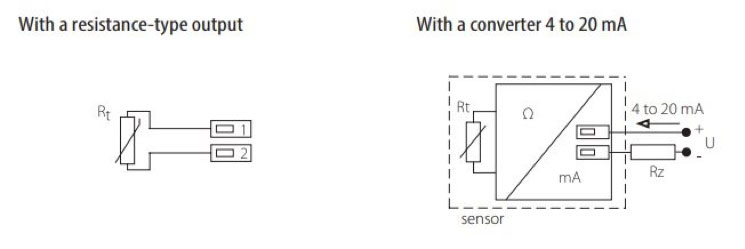

Wiring Diagram
