IN ABB Design

These resistance-type sensors are intended for temperature measurements in interiors and that is why they meet high aesthetic demands. Standard temperature operating range is between 5 and 55 °C (-20 to 75 °C for a short time).

The temperature sensor design is based on the standard design of household wiring material of ABB - ALPHA EXCLUSIVE, IMPULS, SOLO, TANGO, TIME and ELEMENT. The standard colour for the ALPHA EXCLUSIVE line is alabaster. For SOLO, TANGO, ELEMENT and TIME – white, and alpine white for the IMPULS line.

The temperature sensors can be utilised for any control systems that are compatible with sensing element output signals or output signals quoted in the table of sensing element types.

The temperature sensors are designed to be operated in a chemically non-aggressive environment.

Specification

Sensor type Type of sensing element Maximum measuring DC current Measuring range
NS 100 xxxx Ni 1000/5000 1 mA 5 to 55 °C (for short period -20 to 75 °C)
NS 101 xxxx Ni 1000/6180 1 mA 5 to 55 °C (for short period -20 to 75 °C)
NS 102 xxxx Ni 891 1 mA 5 to 55 °C (for short period -20 to 75 °C)
Ns 300 xxxx Ni 10000/5000 0.3 mA 5 to 55 °C (for short period -20 to 75 °C)
NS 301 xxxx Ni 10000/6180 0.3 mA 5 to 55 °C (for short period -20 to 75 °C)
NS 103 xxxx T1 = Ni 2226 0.7 mA 5 to 55 °C (for short period -20 to 75 °C)
PTS 100 xxxx Pt 100/3850 3 mA 5 to 55 °C (for short period -20 to 75 °C)
PTS 200 xxxx Pt 500/3850 1.5 mA 5 to 55 °C (for short period -20 to 75 °C)
PTS 300 xxxx Pt 1000/3850 1 mA 5 to 55 °C (for short period -20 to 75 °C)
HS 100 xxxx thermistor NTC 20 kΩ 1 mW *) 5 to 55 °C (for short period -20 to 75 °C)

*) maximum power consumption

Others Parametrs
Accuracy class Ni sensing elements: B class, Δt = ± (0.4 + 0.007t), for Δt ≥ 0; t = ± (0.4 + 0.028|t|), for t ≤ 0 in °C;
Pt sensing elements: B class according to EN 60751, Δt = ± (0.3 + 0.005|t|) in °C
NTC 20 kΩ: ± 1 °C for the range 0 to 70 °C
Sensor connection according to the wiring diagram
Recommended wire cross section 0.35 to 1.5 mm2
Ingress protection IMPULS – IP 20;
ALPHA EXCLUSIVE, SOLO, ELEMENT, TIME – IP 30;
TANGO – IP50 in accordance with EN 60529, as amended
Material of the connection head ABS
Operating conditions
ambient temperature:
5 to 55 °C (for a short period -20 to 70 °C)
relative humidity:
max 85 % (at the ambient temperature 25 °C)
atmospheric pressure:
87 to 107 kPa
Weight approximately 0.1 kg

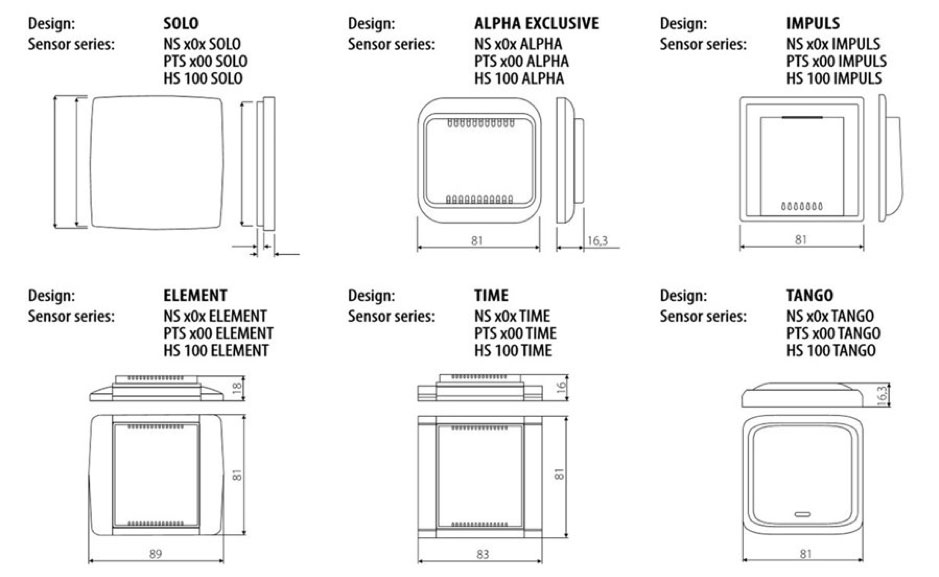

Dimensional Draft

Wiring Diagram
