UP6 and UP7 Thermal Protectors

Carlton Thermal Systems Ltd are approved UK distributors and partners of UCHIYA Thermostat Co. and supply UP6 and UP7 series Thermal Protectors.

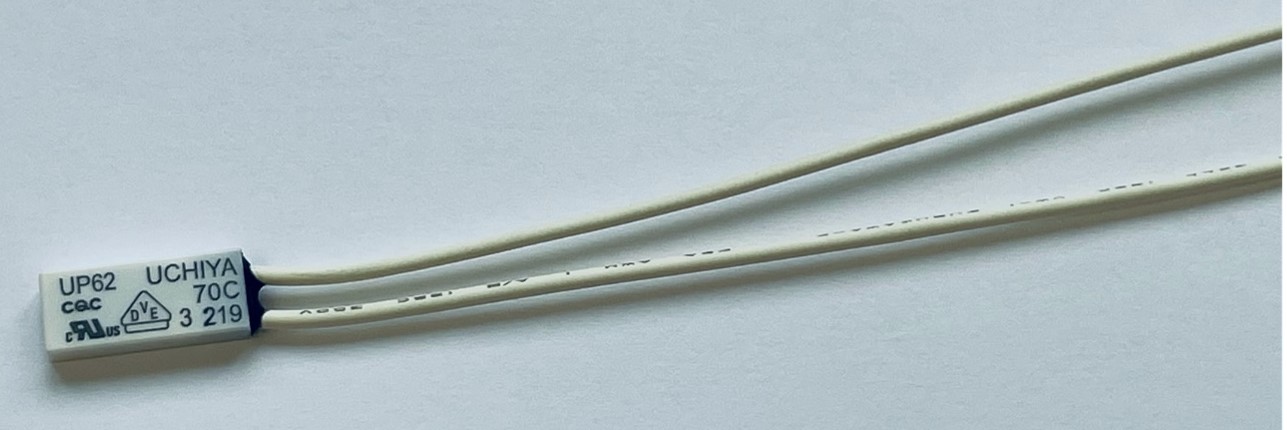

UP6 are the smallest UL recognised Thermal Protectors sealed in PBT enclosures.
Those are used in a wide range of applications such as:
  • Overheat Protectors
  • Small motor
  • Transformers
  • Solenoids
  • Lighting Fixtures
  • Projectors
Specifications:
  • Operating Temperature: 55-140ºC (5ºC step)
  • Tolerance: ±5ºC; ±7 ºC; ±10 ºC
  • Differential: 30 ± 15K (standard)
  • Breaking Capacity:
  •        4A 125V AC 6000 cycle (resistive)
  •        2.5A 250V AC 10000 cycle (resistive)
UP7 are the smallest UL recognised motor protectors sealed in PBT enclosure and stronger than UP6 range.

UP7 protectors are used in applications such as:
  • Overheating protections
  • Motors
  • Transformers
  • Power supply
  • Lighting fixtures
  • Projectors
Specifications:
  • Operating Temperature: 55-150ºC (5ºC step)
  • Tolerance: ±5ºC; ±7 ºC; ±10 ºC
  • Differential: 30 ± 15K (standard)
  • Breaking Capacity:
  •       4A 125V AC 6000 cycle (resistive)
  •       2.5A 250V AC 10000 cycle (resistive)
Visit our downloads page to view technical characteristics or contact our technical sales department for more information, prices or with your specifications.

Also, you can reach us on +44 (0) 1865400514
