COIL:
Condensers SVR/SHR
SVR/SHR Condensers Features:
- Aluminium fins with dfin spacing: 2.5mm
- Copper tubes 9.52mm diameter
- Tubes geometry: 25mm x 21.65mm
- 2,3,4,5 or 6 rows of tubes
FINS:
- Corrugated aluminium fins
- Standard fin spacing 3.0mm (other available on request)
- Staggered geometrty 25 x 21.65
- Special version with tube 1/4“ – staggered
- Geometry 19 x 16.5mm
FAN MOTORS:
- Diameters – 172mm, 200mm, 230mm, 254mm, 300mm
- Single phase 230V/50Hz shaded pole motors
- Aluminium fan blades
- Special versions EC, ATEX on request
CASING:
- Galvanized steel
- Powder coating, epoxy coating, cataphoresis – on request

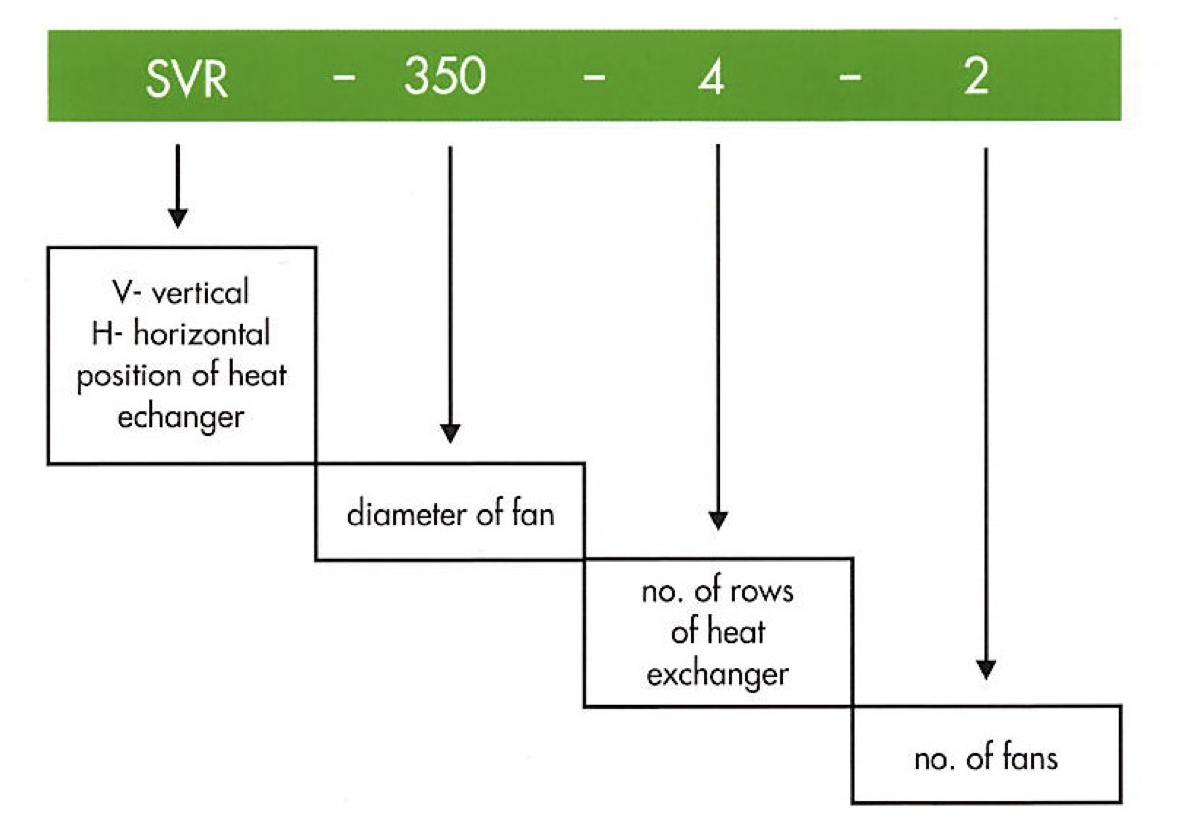

 "Condensers SVR:SHR -1")

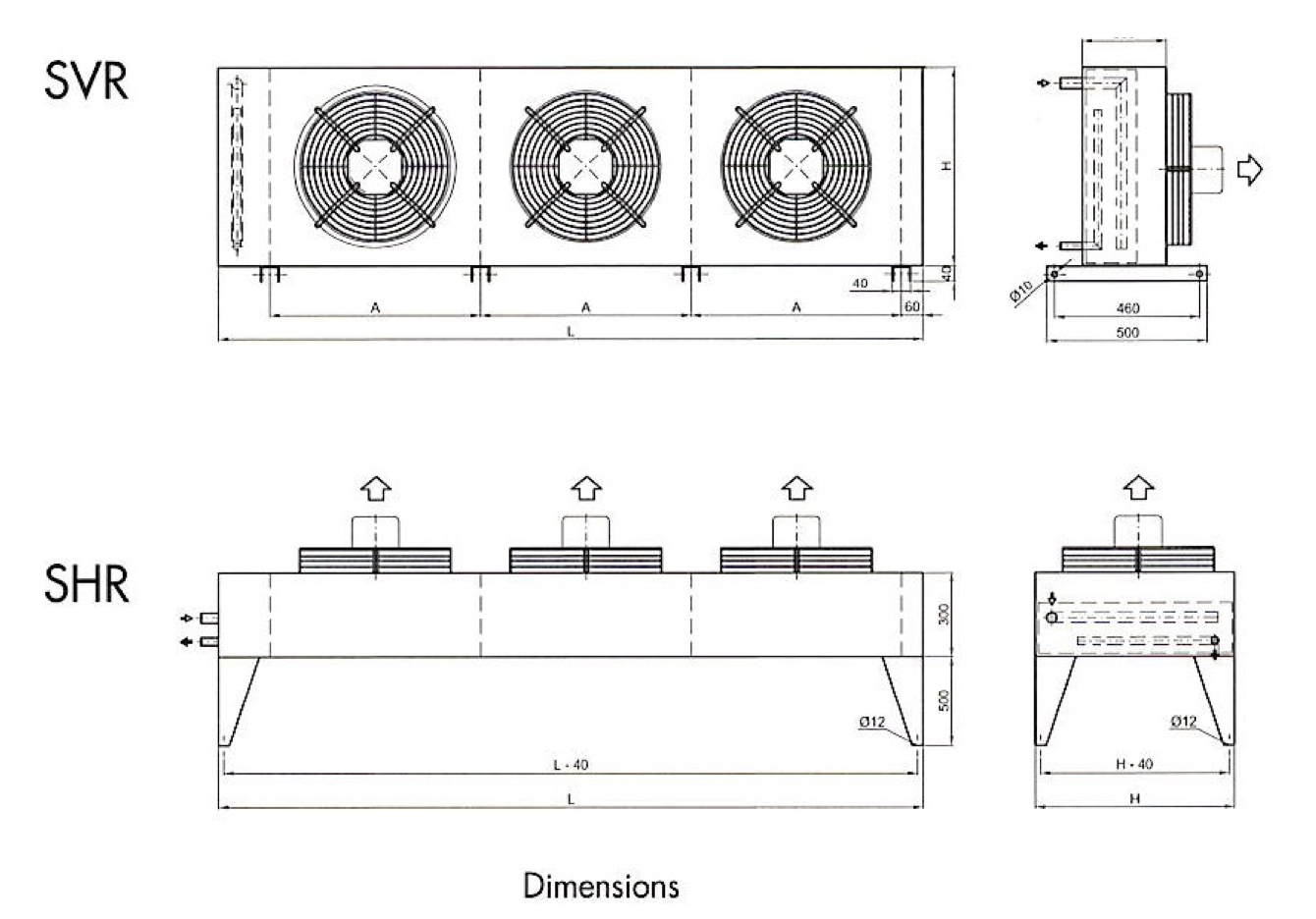

 "Condensers SVR:SHR -3")

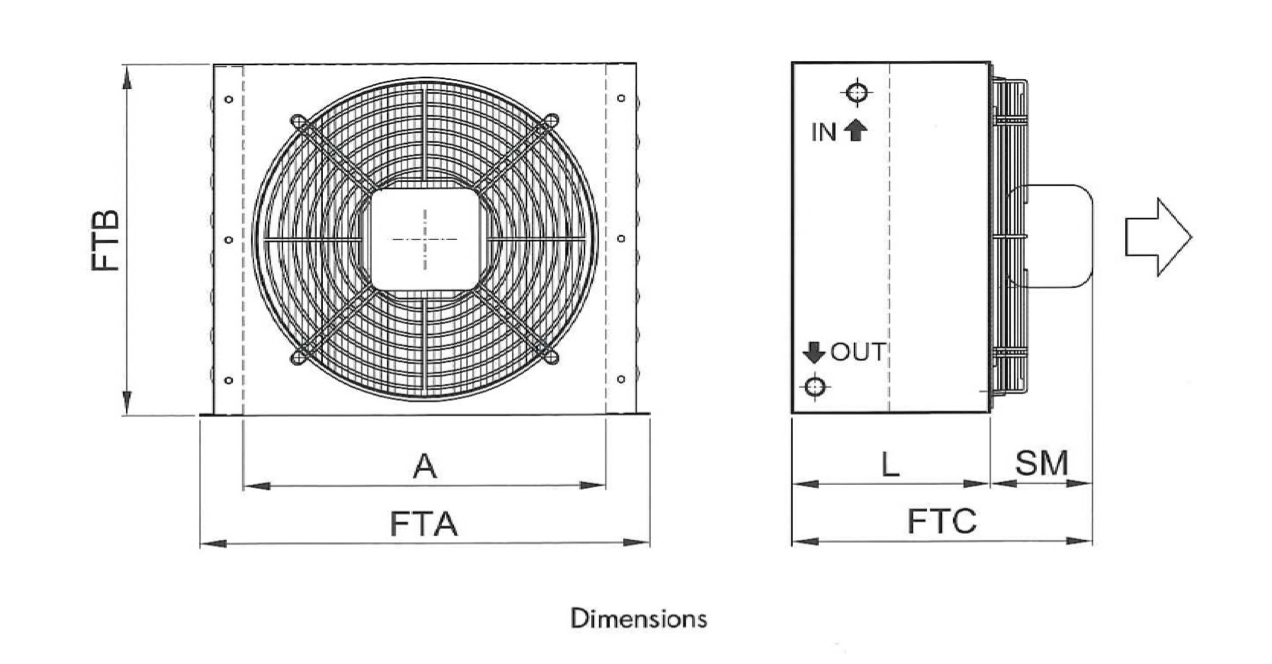

 "Condensers SVR:SHR -2")
