TH 161 Temperature and Humidity Sensors with Cable and I2C Digital Output

The temperature and relative humidity sensors are designed to measure temperature and relative humidity of the air in spaces protected against ingress of water. The sensors consist of a polyamide case containing an SHT30F temperature and relative sensor and an input cable with PVC insulation. Free access of air is ensured to the temperature and relative humidity sensor, which ensures its very fast response to changes in both measured variables. Communication with the sensor is ensured by means of an I2C bus with the communication speed up to 1 MHz and with the possibility of up to two distinguishable and user-selectable addresses.

Recommended operating conditions for ensuring the most precise output values:
  • ambient temperature around the sensor: 5 to 60 °C
  • relative ambient humidity: 20 to 80%
  • atmospheric pressure: 87 to 106 kPa
The temperature and relative humidity sensor are protected with a special PTFE membrane, which increases the resistance of the sensor against the impact of dust and water, ensures the minimum protection level of IP 65 according to EN 60759, as amended and enables the sensor to be used in severe conditions with higher occurrence of dust or spraying water.

The temperature and relative humidity sensors are designed for operation in chemically non-aggressive environments; their manner of use must be chosen regarding the temperature and chemical resistance of the case and the supply cable.

Warnings and restrictions:

The sensors shall not be used for temperature measurement in areas:
  • where the specified technical parameters and operating conditions are not adhered to
  • where there is a mechanical impact on the sensor
  • with a risk of explosion
  • with chemically aggressive environment
  • where the sensor could be exposed to permanent immersion in a liquid
  • where the sensor could be exposed to the impact of electrostatic discharge (ESD)
A failure to observe the stated recommendations and a long-term exposure to conditions outside the recommended operating conditions will have a negative impact on measurement accuracy and the service life of the temperature sensor. Especially at high humidity there can be an offset of RH output signal (e.g., + 3 % RH after 60 hours maintained above the value of 80 % of RH). When the standard range of temperature and humidity is re-established, the sensor automatically returns to the calibrated status.


Sensor type TH161
Type of T + RH sensing element SHT30F
Communication bus I2C, maximum communication speed 1 MHz
Temperature measuring range maximum: -20 to 80 °C
recommended: 5 to 60 °C
Temperature measuring accuracy ± 0.2 °C in the range of 0 to 65 °C
± 0.5 °C in the range of -20 to 80 °C
Relative humidity measuring range maximum: 0 to 100 %
recommended: 20 to 80 °C
Vdd power supply 2.15 to 5.5 V
Ingress protection IP 65 in accordance with EN 60529, as amended
(with an applied PTFE membrane only)
Time response (25°C, 1m/s)* temperature: τ0.63 > 2 s
relative humidity: τ0.63 > 8 s
Case material polyamide-based plastic - THERMELT 867
Diameter of the case 8 ± 0.1 mm
Case length 40 mm
Supply cable type PVC unshielded 5 x AWG 28, diameter 4.0 ± 0.3 mm
Supply cable length maximum 3 m
Weight 30 g for 1m cable

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

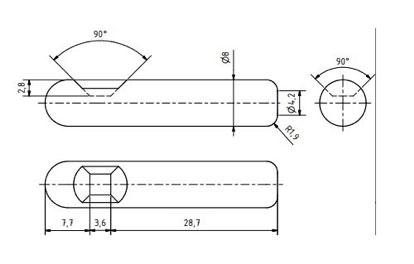

Dimensional Draft

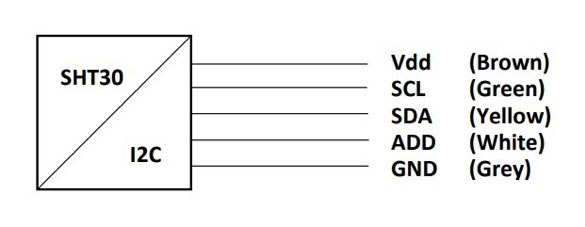

Wiring Diagram
