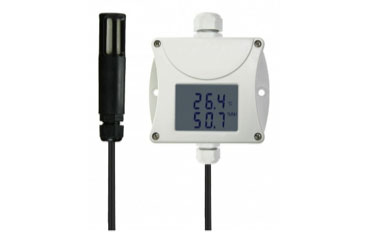

T3111 Temperature and Humidity Sensor +Tdp Cable Probe, output 4-20mA

Humidity and temperature sensor T3111 for outdoor and indoor use.

Relative humidity, temperature sensors at probe on the cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

The device is supplied with T+RH probe with 1 meter cable.

INCLUDED IN DELIVERY:
• T3111
• Instruction Manual
• Traceable Calibration Certificate
• FREE software TSensor for Configuring of the Transmitter

Specification

Sensor type T3111
Measured value Temperature
Relative humidity
Counted values (dew point…)
Temperature Sensor
Measuring range -30 to +105 °C
Accuracy ±0.4 °C
Resolution 0.1 °C
Humidity Sensor
Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH
Dew Point
Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T < 25 °C and RH > 30 %
Resolution 0.1 °C
Main Technical Data
Operating temperature -30 to +80 °C
Channels 1x connectable temperature + humidity probe
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output 4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation all temperature range
Configuration of output user adjustable from PC; measured range + value
Power 9-30 VDC
Protection class IP65 electronics; IP40 sensors
Dimensions 88.5 x 145 x 39.5 mm; length/diameter of external probe 88/18 mm
Weight approx. 210 g
External probe cable length 1 meter

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

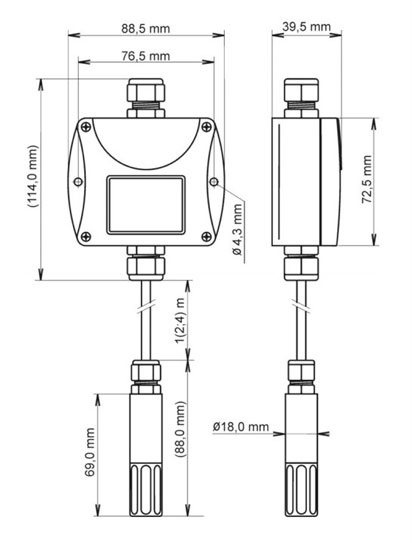

Dimensional Draft

Visit our downloads page to view technical characteristics or contact our technical sales department for more information, prices or with your specifications.
