T3110Ex Intrinsically Safe Humidity and Temperature Transmitter with 4 to 20 mA Output

ATEX certified relative humidity temperature transmitter. Outdoor, indoor use.

Built-in relative humidity, temperature sensors. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

ATEX certification for use in potentially explosive environments.

INCLUDED IN DELIVERY:
• T3110Ex
• Instruction Manual
• Traceable Calibration Certificate
• FREE software TSensor for Configuring of the Transmitter

Specification

Sensor type T3110Ex
Measured value Temperature
Relative humidity
Counted values (dew point…)
Temperature Sensor
Measuring range -30 to +80 °C
Accuracy ±0.4 °C
Resolution 0.1 °C
Humidity Sensor
Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH
Dew Point
Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T < 25 °C and RH > 30 %
Resolution 0.1 °C
Certificate FTZÚ 13 ATEX 0189X
Marking EX ll 3G Ex ic llC T6 Gc
Main Technical Data
Operating temperature -30 to +60 °C
Channels internal temperature and humidity sensor
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output 4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation all temperature range
Configuration of output user adjustable from PC; measured range + value
Power 9-30 VDC
Protection class IP65 electronics; IP40 sensors
Dimensions 88.5 x 170 x 39.5 mm; stem length 75 mm
Weight approx. 150 g

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

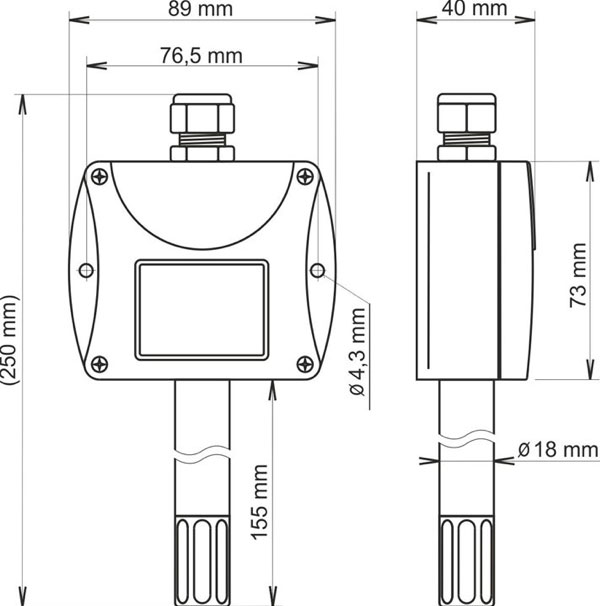

Dimensional Drawing

Visit our downloads page to view technical characteristics or contact our technical sales department for more information, prices or with your specifications.

Also, you can reach us on +44 (0) 1865400514
