T0213 Temperature and Humidity Duct Probe with 0-10V Output

Humidity and temperature sensor T0213 for outdoor and indoor use. Duct mount.
Relative humidity, temperature sensors at 150mm stem. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

INCLUDED IN DELIVERY:
• T0213
• Instruction Manual
• Traceable Calibration Certificate
• FREE software TSensor for Configuring of the Transmitter

Specification

Sensor type T0213
Measured value Temperature
Relative humidity
Counted values (dew point…)
Temperature Sensor
Measuring range -30 to +125 °C
Accuracy ±0.4 °C
Resolution 0.1 °C
Humidity Sensor
Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH
Dew Point
Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T < 25 °C and RH > 30 %
Resolution 0.1 °C
Main Technical Data
Operating temperature -30 to +80 °C
Channels internal temperature and humidity sensor
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output 0 - 10 V
Range of humidity sensor temperature compensation all temperature range
Configuration of output user adjustable from PC; measured range + value
Power 15-30 VDC; 24 VAC
Protection class IP65 electronics; IP40 sensors
Dimensions 88.5 x 250 x 39.5 mm; stem length 150 mm
Weight approx. 150 g

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

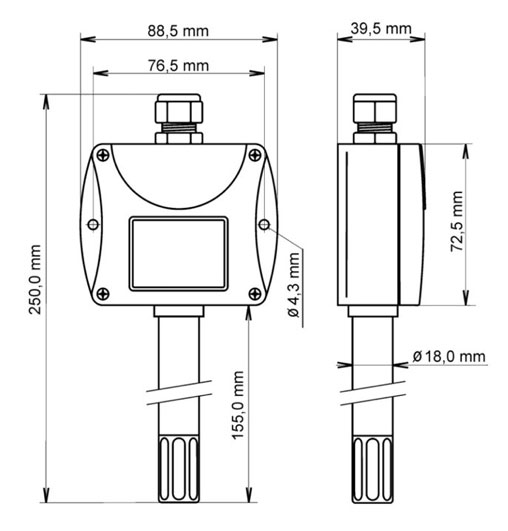

Dimensional Draft

Visit our downloads page to view technical characteristics or contact our technical sales department for more information, prices or with your specifications.
