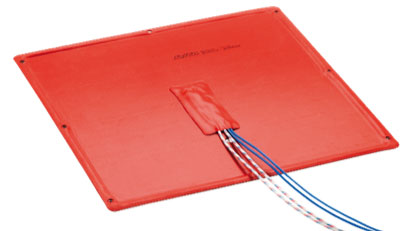

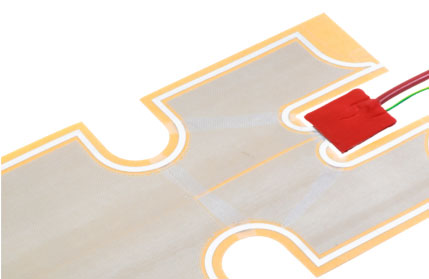

Etch Foil Heaters

Carlton Thermal Systems are approved suppliers for RICA division IRCA Spa, one of the largest heater manufacturers in the World.

Together we develop and supply very high-quality Etched Foil elements for heating surfaces and fluids through excellent heat exchange and thermal uniformity.

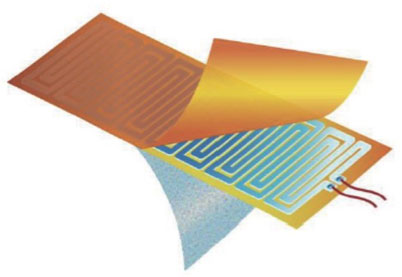

The basic principle is to insert a slim metal heating track (aluminium, steel, nickel-chrome non-magnetic alloys, copper, constantan, etc.) between two insulating sheets of Silicone, Polyimide, Mica or Polyester.

There are endless possibilities in design and the heaters are supplied with the following:
  • Wires with PVC, Silicone, Teflon or Polyimide protection
  • Connectors
  • Controls (thermostats and thermal fuses)
  • Sensors (thermocouples, PT100, PT1000, NTS, SMD components)
  • ZIF connectors
The applications for this type of heater are very diverse from Aerospace (satellites, space stations, planes, etc) through to Electro-medical applications, domestic panel radiators and waterbed heaters.

Flat Heating Elements offer many advantages that make them the most effective solutions for many applications:
  • Possibility to differentiate power distribution in specific areas to offset possible lack of thermal consistency
  • Temperature range - 50 to 350ºC
  • Minimum heat dispersion for application on external surfaces
  • Possibility to provide complex and versatile designs for virtually any application
  • Easy fit
  • Minimum weight and thickness
  • Cost effectiveness
Manufacturing processes used for etched foil heaters for the aerospace industry are ESA certified to ESCC 4009 and 4009/002 specifications.

Flat Heating Elements are UL and VDE certified and can have a protection rating up to IP 67.
Visit our downloads page to view technical characteristics or contact our technical sales department for more information, prices or with your specifications.

Also, you can reach us on +44 (0) 1865400514
