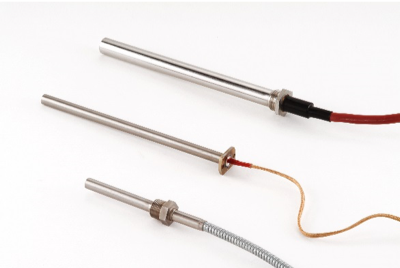

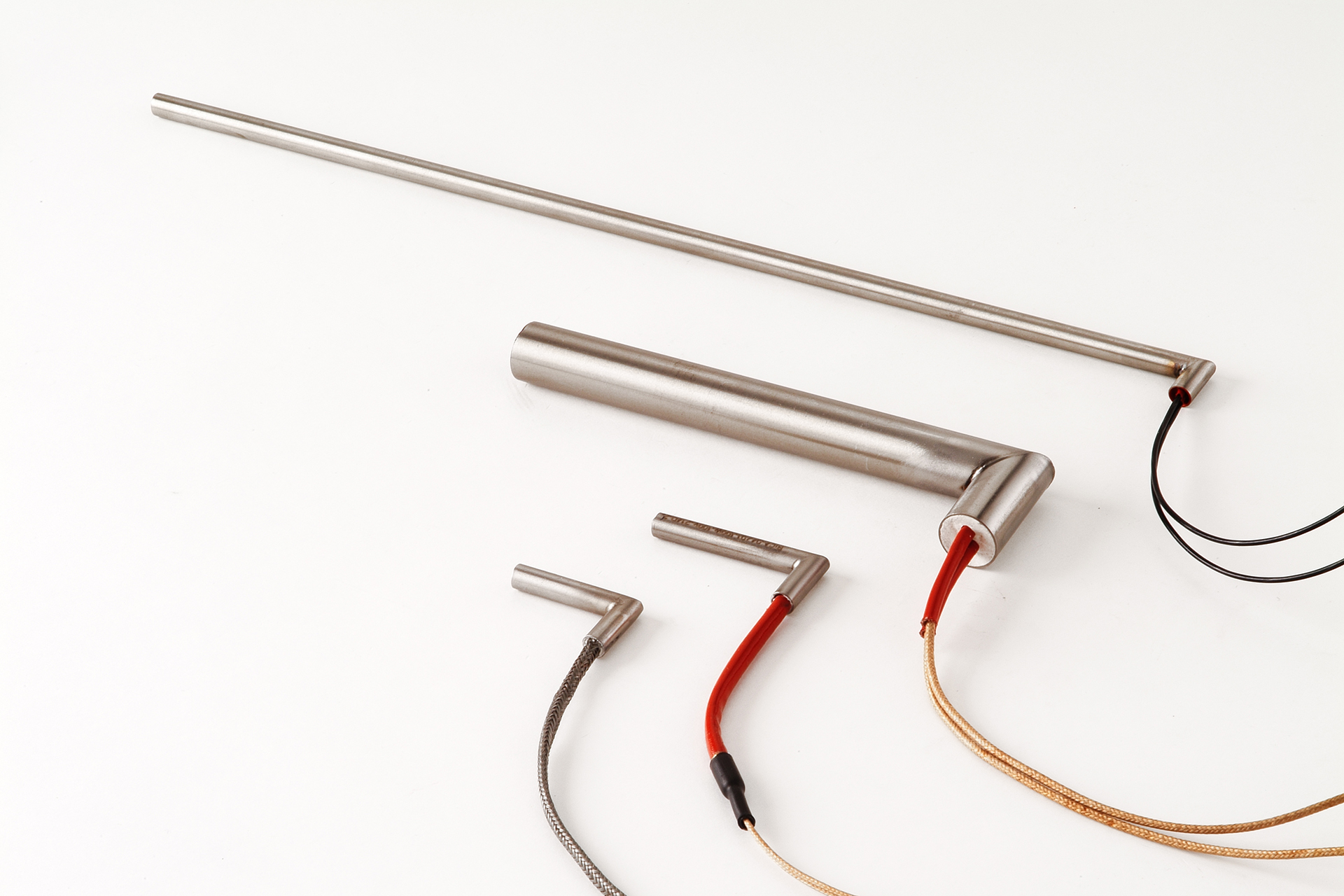

Cartridge Heating Elements

Carlton Thermal Systems Ltd are approved UK agents for RICA division IRCA S.p.A. and we supply a wide range of cartridge heating elements, manufactured to highest standards.

We offer cartridge heaters manufactured to your requirements from 6mm up to 60mm OD manufactured for a specific application, working temperature or specific load involved:
  • With low, medium and high density and nickel-chrome resistive wire.
  • PTC (positive temperature coefficient) with ceramic semiconductor.
Cartridge heating elements optimize heat exchange to provide uniform heating of the application and are also used to heat very small masses with specific power and high temperatures.
Our cartridge heating elements are extremely versatile. They can operate in air or liquid or fitted into a gauged hole in direct contact with metal.
Cartridge heating elements are CSA and UL approved with the following limits:
  • Maximum temperature: 850°C
  • Maximum voltage: 600 V
  • Maximum surface load: 35 W/cm2
Type of product Max. spec. load (W/cm2) Max. temperature (°C) Min-max diameter (mm)
High density 50 850 3.1 - 20
Medium density 10 600 3.1 - 20
Low density 6 450 6.35 - 60
PTC 6 240 9.5 - 12
Visit our downloads page to view technical characteristics or contact our technical sales department for more information, prices or with your specifications.

Also, you can reach us on +44 (0) 1865400514
