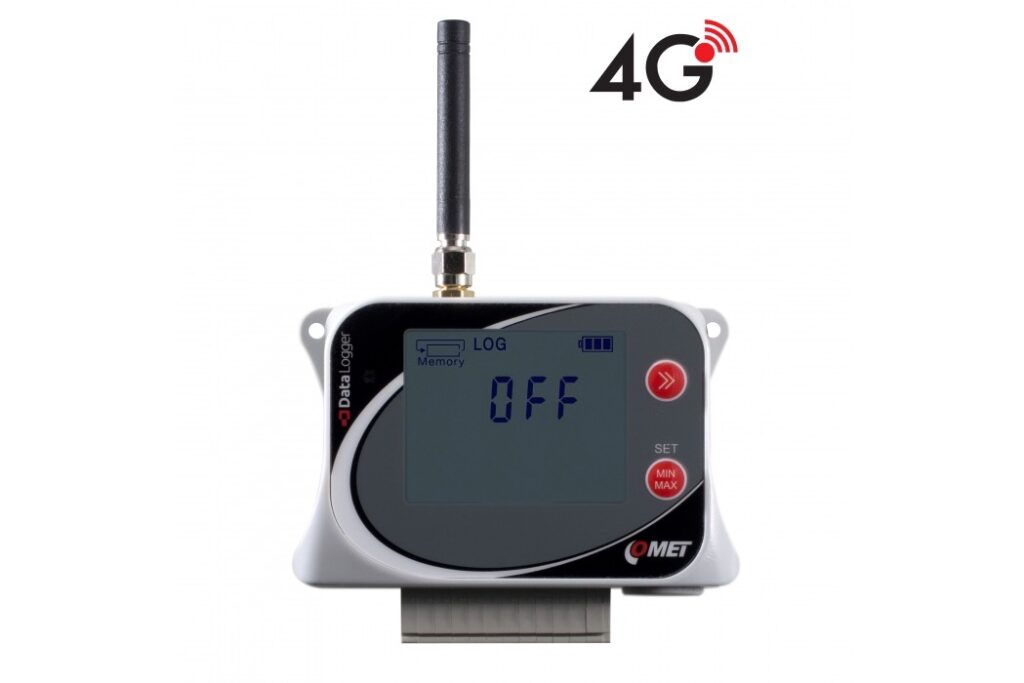

IoT WIRELESS FOUR CHANNEL DATA LOGGER WITH PULSE AND TWO-STATE INPUTS, WITH BUILT-IN 4G MODEM

IoT Wireless Datalogger kit with built-in GSM modem and Flat Rate SIM Card allows the instant connection to the COMET Cloud.

IoT Datalogger is designed to record from four binary inputs or from pulse and two binary inputs. In case of exceeded set limits, email is sent from the COMET Cloud.

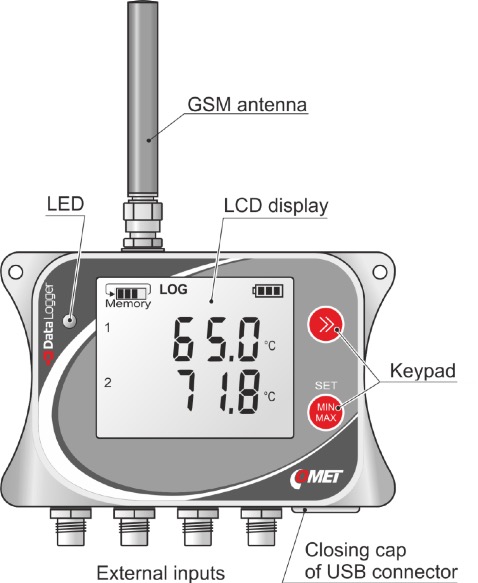

Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.

The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.

GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

CODE: U7844G

INCLUDED IN DELIVERY

• U7844G
• Instruction Manual
• Rechargeable Battery
• Power Supply
• USB-C Cable
• FREE Analytical Software COMET Vision
• COMET Cloud for 3 Months

TECHNICAL DATA

Measured Value
Two-state signal
Pulses

Binary Input
Parameters of the voltage contact „L” Level input voltage: < 0,4 V(*);
„H“ level input voltage: > 2 V;
Minimum voltage applicable: 0V;
Maximum voltage applicable: +30V DC
Parameters of the voltage-free contact Contact resistance in „switched-on“ state: < 10 kOhm;
Contact resistance in the „switched-off“ state: > 300 KOhm;
Contact voltage in the „switched-off“ state: ca 3V;
Minimum state duration necessary for latching the state:1s

Counter Input
Counter parameters: Range 24 bits (16 777 215), possibility of letting the counter overflow.
Maximum pulse frequency:
• configured for voltage input – max. 5kHz
• configured for voltage-free or open-collector transistor – max. 200Hz.

GSM Modem Parameters
LTE Cat 1: LTE FDD/GSM/GPRS/EDGE
Supported network types:
GSM/GPRS/EDGE 900/1800 MHz
LTE FDD B1/B3/B5/B7/B8/B20

General Technical Data
Operating temperature: -20 to +60 °C
Channels: 4x binary input nebo 2x binary input a 2x counter
Memory: 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval to the internal memory:
adjustable from 1 second to 24 hours
Recording interval to the COMET Cloud:
from 5 minutes
Interval for measuring and evaluating alarms:
adjustable 1 s, 10 s, 1 min.
Recording mode:
• noncyclic - data logging stops after filling the memory.
• cyclic - after filling memory oldest data is overwritten by new.
Real time clock: year, leap year, month, day, hour, minute, second
Power:
rechargeable Li-Ion battery A8200, 3.6V/5200mAh
Protection class: IP20
Dimensions: 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
Weight (including batteries): approx. 270 g.
Warranty: 3 years
