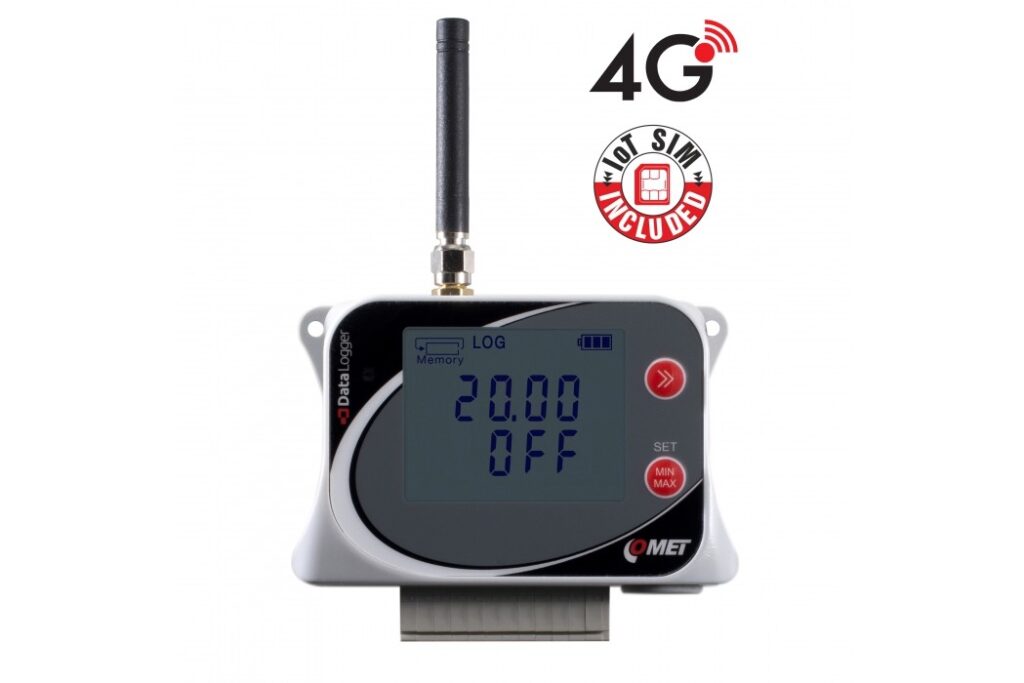

IoT WIRELESS DATA LOGGER FOR 3 CURRENT INPUTS 0-20mA AND TWO-STATE INPUT, WITH BUILT-IN 4G MODEM AND FLAT RATE SIM CARD

IoT Wireless datalogger with built-in GSM modem and Flat Rate SIM Card allows the instant connection to the COMET Cloud.

IoT Datalogger is designed to record 3 current inputs and 1 binary input. In case of exceeded set limits email is sent from the COMET Cloud.

Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.

The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.

GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

CODE: U6841Gsim

• U6841Gsim
• Instruction Manual
• Traceable Calibration Certificate
• Rechargeable Battery
• Power Supply
• USB-C Cable
• FREE Analytical Software COMET Vision
• IoT ready Flat Rate SIM Card
• COMET Cloud for 3 Months

Measured Value
Current
Two-state signal

GSM Modem Parameters
LTE Cat 1: LTE FDD/GSM/GPRS/EDGE
Supported network types:
GSM/GPRS/EDGE 900/1800 MHz
LTE FDD B1/B3/B5/B7/B8/B20

Current Input
Measuring range: 0-20mA DC
Resolution: better than 1µA
Accuracy: ± 20 µA
Input resistance: approx. 100 Ω
Minimum Current: 0mA (open circuit)
Maximum Current: limited to approx. 40mA

Binary Input
Parameters of the voltage contact „L” Level input voltage: < 0,8 V(*);
„H“ level input voltage: > 2 V;
Minimum voltage applicable: 0V;
Maximum voltage applicable: +30V DC
Parameters of the voltage-free contact: contact resistance in „switched-on“ state: < 10 kOhm;
Contact resistance in the „switched-off“ state: > 2 MOhm;
Contact voltage in the „switched-off“ state: ca 3V;
Minimum state duration necessary for latching the state:1s

General Technical Data
Operating temperature: -20 to +60 °C
Channels: 3x current input, 1x binary input
Memory:
500,000 values in noncyclic logging mode.
350,000 values in cyclic record mode
Recording interval to the internal memory:
adjustable from 1 second to 24 hours
Recording interval to the COMET Cloud:
from 5 minutes
Interval for measuring and evaluating alarms:
adjustable 1 s, 10 s, 1 min.
Recording mode:
• noncyclic - data logging stops after filling the memory.
• cyclic - after filling memory oldest data is overwritten by new.
Real time clock: year, leap year, month, day, hour, minute, second
Power:
rechargeable Li-Ion battery A8200, 3.6V/5200mAh
Protection class: IP20
Dimensions: 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
Weight (including batteries): approx. 270 g.
Warranty: 3 years
