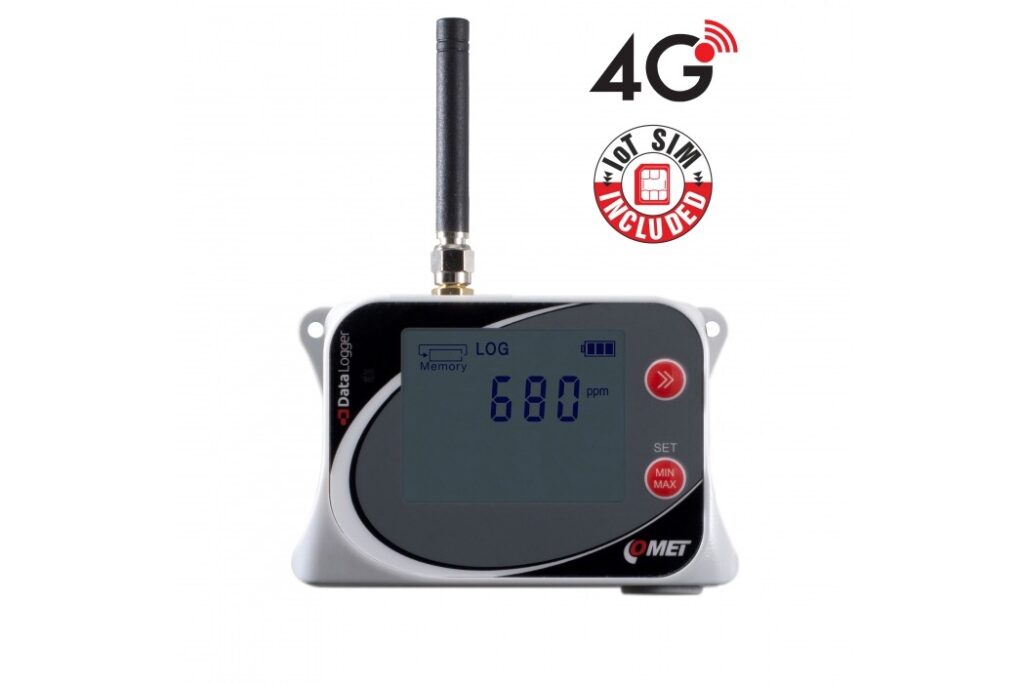

IoT WIRELESS CO² DATA LOGGER WITH BUILT-IN SENSOR, 4G MODEM AND FLAT RATE SIM CARD

IoT Wireless Datalogger kit with built-in GSM modem and Flat Rate SIM Card allows the instant connection to the COMET Cloud.

IoT Datalogger is designed to record CO² from built-in sensor. In case of exceeded set limits, email is sent from the COMET Cloud.

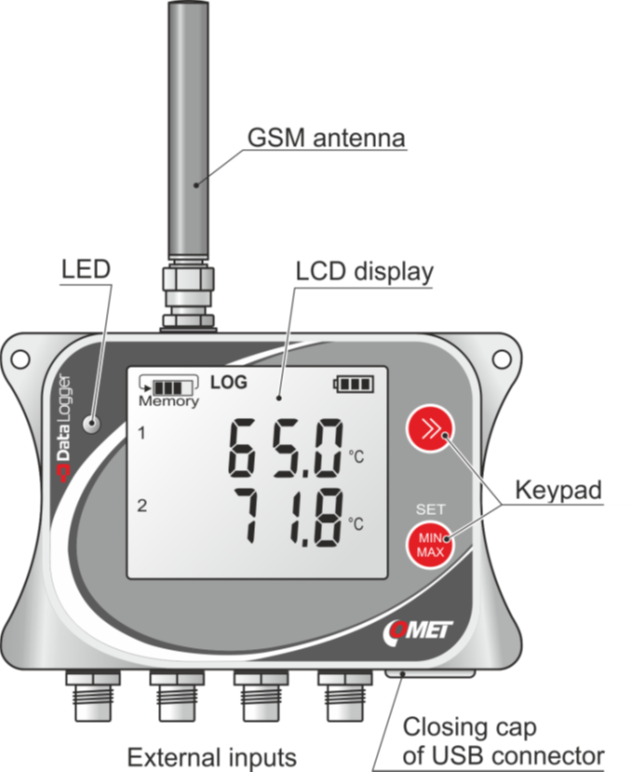

Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.

The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.

GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

CODE: U8410Gsim

• U8410Gsim
• Instruction Manual
• Traceable Calibration Certificate
• IoT ready Flat Rate SIM Card
• Rechargeable Battery
• Power Supply
• USB-C Cable
• FREE Analytical Software COMET Vision
• COMET Cloud for 3 Months

Measured Value
CO²

CO² Sensor
Measuring range: 0 to 5000 ppm
Accuracy: ± (50 ppm + 3% from reading)
Measured interval: 15 s with external power supply, 2 min on battery power

GSM Modem Parameters
LTE Cat 1 LTE FDD/GSM/GPRS/EDGE
Supported network types:
GSM/GPRS/EDGE 900/1800 MHz
LTE FDD B1/B3/B5/B7/B8/B20

General Technical Data
Operating temperature: -20 to +60 °C
Channels: Internal CO² sensor
Memory:
500,000 values in noncyclic logging mode.
350,000 values in cyclic record mode
Recording interval to the internal memory:
adjustable from 1 second to 24 hours
Recording interval to the COMET Cloud:
from 5 minutes
Interval for measuring and evaluating alarms:
adjustable 1 s, 10 s, 1 min.
Recording mode:
• noncyclic - data logging stops after filling the memory.
• cyclic - after filling memory oldest data is overwritten by new.
Real time clock: year, leap year, month, day, hour, minute, second
Power:
rechargeable Li-Ion battery A8200, 3.6V/5200mAh
Protection class: IP20
Dimensions: 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
Weight (including batteries): approx. 250 g.
Warranty: 3 years
