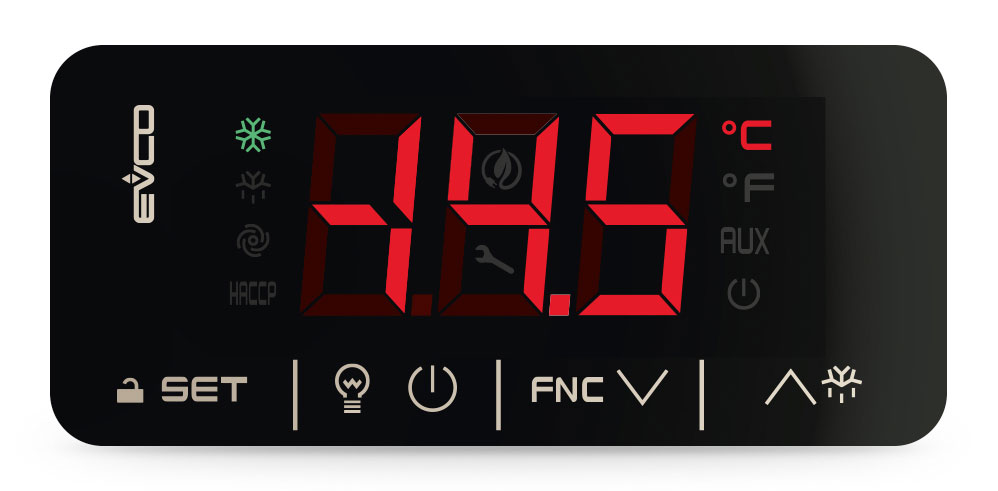

EV3 200 Controllers

Controllers for
  • refrigerated cabinets
  • counters
  • islands
EV3 200 is a range of controllers for the optimised, high energy-efficiency management of refrigerated units at normal, low, static or fan-driven temperatures.
A compact stylish design (74x32mm panel-fitted, 4 capacitive touch keys and IP65 protection), the range includes basic temperature regulators, standard controllers with TTL port, controllers with RS-485 port and controllers compatible with the EVconnect app.

The energy-saving strategies, including adaptive defrost and set-point adjustment, are combined with compressor protection functions and the possibility of driving high-power compressors, up to 2 HP, without the need for additional hardware (in models fitted with electro-mechanical relay, 30 A res. @ 250 VAC).

The TTL port enables connection of optional plug-in modules powered by the controller. The clock module can be used to activate basic real-time functions, such as RTC defrost and recording 9 alarms, while for advanced functions associated with HACCP data traceability, a Bluetooth BLE 4.0 (EVlink) interface is available with models EV3292 and EV3294, enabling data display and access from mobile devices. The clock and Bluetooth are also available as built-in versions.

Technical Features

Basic controllers
EV3201N3 EV3201N7 EV3203N3 EV3203N7
Units at normal temperature
Low-temperature units
Fixed screw terminal blocks
Power supply
12-24 VAC/DC
230 VAC
Analogue inputs
Cabinet probe (PTC/NTC)
Auxiliary probe (PTC/NTC)
Digital inputs
Door switch/multi-purpose
Configurable inputs (analogue or digital)
Auxiliary probe (PTC/NTC) or door switch/multi-purpose
Digital outputs (electromechanical relays; A res. @ 250 VAC)
Compressor 16 A 16 A 16 A 16 A
Defrost 8 A 8 A
Evaporator fans 5 A 5 A
Other standard features
Operates with EV3KEY
Energy-saving function
Adaptive defrost management system
Cooling/heating function mode
Available options
- with full-sealed relays for equipment using hydrocarbons.
- screw terminal blocks can be supplied in a version other than the standard equipment (fixed or plug-in).
Visit our downloads page to view technical characteristics or contact our technical sales department for more information, prices or with your specifications.

Also, you can reach us on +44 (0) 1865400514
