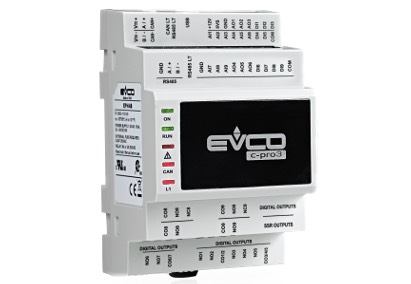

C-Pro 3 EXP kilo

c-pro 3 EXP kilo is a range of I/O expansions for programmable controllers belonging to the c-pro 3 series.

They are available in blind version.

The expansions have a considerable number of inputs and outputs; they make it possible to create a flexible, modular, and expandable control devices network.

Installation is on DIN rail, into a control panel.

Technical Features

I/O Expansions c-pro 3 EXP kilo c-pro 3 EXP kilo+
EPK3E EPK3EXP EPK3ESR
Version
blind
Dimensions
DIN modules 4 4 4
Connections
removable spring terminal blocks
removable screw terminal blocks
Power supply
24 VAC/DC not isolated
Analog inputs
PTC/NTC/Pt 1000 3 3 3
PTC/NTC/Pt 1000/0-20 mA/4-20 mA/0-5 V ratiometric/0-10 V 3 6 6
Digital inputs (for NA/NC contact)
optoisolated 24 VAC/DC 50/60 Hz contacts 3 7 7
optoisolated 24 VAC/DC 2 KHz contacts 2 2 2
Analog outputs
PWM/0-10 V 2 2 2
0-10 V 2 2
0-20 mA/4-20 mA/0-10 V 1 2 2
Digital outputs (electromechanical relays; res. A @ 250 VAC)
3 A SPST 7 7 7
3 A SPDT 2
Digital outputs (command for solid state relay)
24 VAC/DC, 0.6 mA max 2
Communication ports
CANBUS CAN 1 1 1
USB 1 1 1
Visit our downloads page to view technical characteristics or contact our technical sales department for more information, prices or with your specifications.

Also, you can reach us on +44 (0) 1865400514
