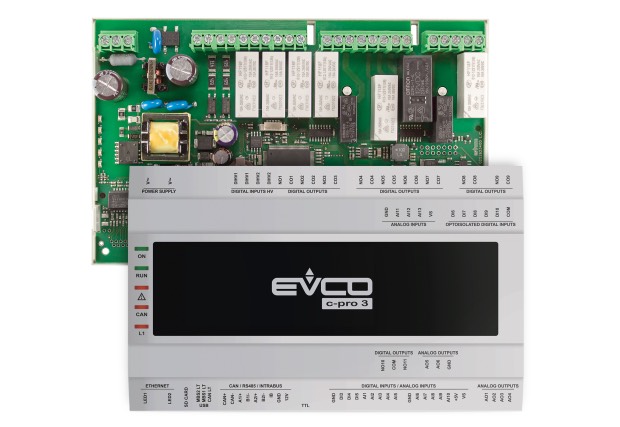

C-Pro 3 giga

The range of c-pro 3 giga programmable controllers has up to 43 I/O, as well as a wide range of communications ports and protocols, making possible advanced management of HVAC/R applications, also according to their use in local or remote-control systems.

The application software can be set up quickly and intuitively thanks to the UNI-PRO 3 integrated development environment. All models have both BACnet MSTP, and a data-logging function and the NODE versions are also fitted with an Ethernet port for the use of MODBUS TCP, BACnet IP and Web Server.

Some controllers have 2 built-in drivers for unipolar stepper-type expansion valves.
In the 10 DIN module blind version, the controller is compatible with all the displays of the programmable c-pro 3 range, available in a wide choice of formats, technologies, and installation methods.

Technical Features

Programmable controllers c-pro 3 giga c-pro 3 giga + c-pro 3 giga U-EEV c-pro 3 NODE giga c-pro 3 NODE giga + c-pro 3 NODE giga U-EEV
EPG9O EPG9B EPG9BXP EPG9BXQ EPG9BXU EPG9OHX EPG9BHX EPG9BHP EPG9BHQ EPG9BHU
FORMAT
10 DIN modules, open frame
10 DIN modules with a housing
INSTALLATION
On a DIN rail
CONNECTIONS
Fixed screw terminal blocks
Plug-in screw terminal blocks
POWER SUPPLY
115... 230 VAC
CONFIGURABLE INPUTS (ANALOGUE OR DIGITAL)
Analogue input (PTC/NTC/Pt 1000) or digital input (dry contact) 5 5 8 8 8 5 5 8 8 8
Analogue input (PTC/NTC/Pt 1000/0-5 V/0-10 V/0-20 mA/4-20 mA) or digital input (dry contact) 5 5 8 8 8 5 5 8 8 8
DIGITAL INPUTS
Dry contact 4 4
Dry contact for pulse trains up to 2 KHz 3 3 3 3 3 3 3 3 3 3
High voltage 2 2 2 2 2 2 2 2 2 2
ANALOGUE OUTPUTS
0-10 V/PWM 4 4 8 4 4 4 4 8 4 4
DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC)
2 A SPST 2 2 6 6 2 2 2 6 6 2
3 A SPST 5 5 5 5 5 5 5 5 5 5
3 A SPDT 1 1 2 2 1 1 1 2 2 1
5 A SPST 2 2
8 A SPST 1 1 1 1 1 1 1 1 1 1
COMMUNICATIONS PORTS
MODBUS TTL 1 1 1 1 1 1 1 1 1 1
INTRABUS 1 1 1 1 1 1 1 1 1 1
MODBUS RS-485 slave 1 1 1 1 1 1 1 1 1 1
RS-485 (MODBUS master/slave, BACnet MS/TP) 1 1 1 1 1 1 1 1 1 1
CAN 1 1 1 1 1 1 1 1 1 1
USB 1 1 1 1 1 1 1 1 1 1
Ethernet (MODBUS TCP, Web Server, BACnet IP) 1 1 1 1 1
OTHER STANDARD FEATURES
Clock
Built-in drivers for unipolar stepper-type electronic expansion valves 2 2

Notes

(1) The BACnet communications protocol can be used only in alternative to the Web Server function.
Visit our downloads page to view technical characteristics or contact our technical sales department for more information, prices or with your specifications.

Also, you can reach us on +44 (0) 1865400514
