ON/OFF Controllers

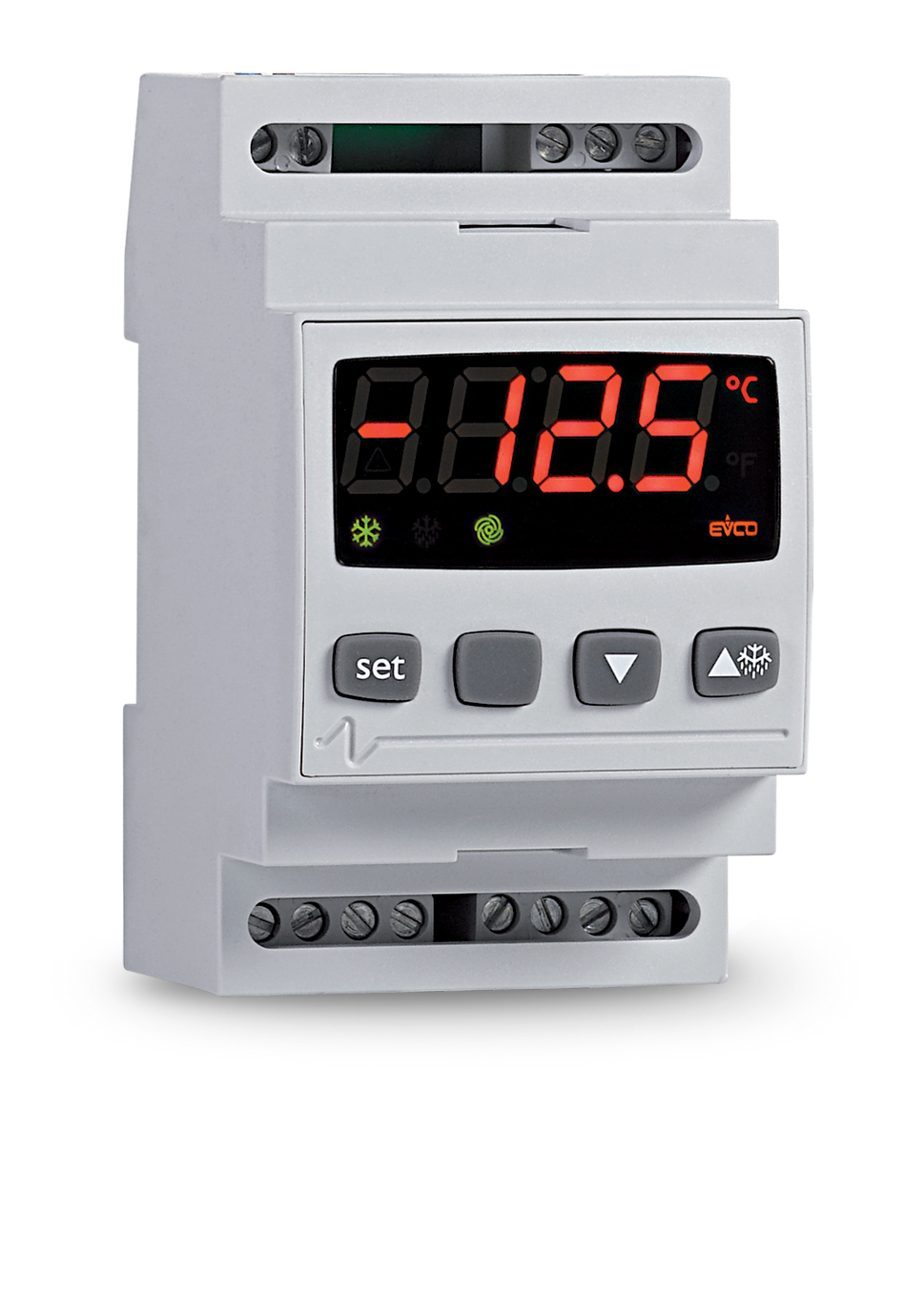

EV6 is a range of 1- and 2-step temperature controllers used for management of cold rooms.

They are available in compact version, in the standard size 3 DIN modules; the user interface consists of a custom display (with decimal point and function icons), three keys and guarantees an IP54 protection rating, for easy cleaning.

Some controllers have a 16 res. A @ 250 VAC electromechanical relay for the direct control of middle power compressors (causing it to switch off) if the condenser temperature is outside an allowed range.
Installation is on DIN rail, into a control pane

1-step temperature controllers

EV6421P7EV6421J7EV6421M7
Power supply
230 VAC
Analog inputs
room probe (PTC/NTC)
room probe (J/K)
room probe (multi-input) (1)
Digital inputs (for NA/NC contact)
multipurpose
Digital outputs (electromechanical relays; res. A @ 250 VAC)
load8 A16 A16 A
Other features
cooling/heating operation
defrost management
Notes
(1) configurable for PTC/NTC, J/K, 2/3 wires Pt 100 and Ni 120, 2/3 wires Pt 1000, 0-20/4-20 mA and 0-10/2-10 V.

Available options
- alarm buzzer
- MODBUS TTL port, for EVKEY programming key and for other EVCO products.

2-step temperature controllers

EV6421P7EV6421J7EV6421M7
Power supply
230 VAC
Analog inputs
room probe (PTC/NTC)
room probe (J/K)
room probe (multi-input) (1)
Digital inputs (for NA/NC contact)
multipurpose
Digital outputs (electromechanical relays; res. A @ 250 VAC)
load8 A16 A16 A
Other features
cooling/heating operation
defrost management
Notes
(1) configurable for PTC/NTC, J/K, 2/3 wires Pt 100 and Ni 120, 2/3 wires Pt 1000, 0-20/4-20 mA and 0-10/2-10 V.

Available options
- alarm buzzer
- MODBUS TTL port, for EVKEY programming key and for other EVCO products.

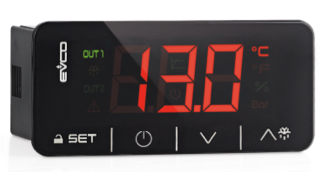

The EV3 400 range of controllers are designed for all industrial environments in which precise temperature control is of vital importance.
The multi-sensor analogue input makes it ideal for various production processes.

These controllers have up to 3 digital outputs and 1 analogue output whose signal can be a function of regulation rather than proportional to the value detected by the analogue input. Control can be either on-off or PID (with auto-tuning).
The external EVlink module with Bluetooth BLE connectivity enables access from an Android smartphone with the EVconnect app, making possible configuration, download and exchange of data and parameter maps.

The format is the standard 74 x 32 mm, the keys are capacitive, and the front has a continuous surface with IP65 protection.
EV3422M9EV3423M3EV3423M9
Power supply
12-24 VAC/DC
115-230 VAC
230 VAC
Analogue inputs
Regulation probe (PTC/NTC)
Regulation probe (multi-sensor) (1)
Digital inputs
Multi-purpose (2)
Analogue outputs
Analogue output (0-10 V/PWM) (3)
Digital outputs (electro-mechanical relays; A res. @ 250 VAC)
Load 1 (configurable)16 A16 A16 A
Load 2 (configurable)8 A8 A8 A
Alarm (configurable)8 A8 A
Communications ports
MODBUS TTL
Other standard features
Alarm buzzer
PID with auto-tuning control
On-off/PID control
Optional features
APP-based management with BLE Bluetooth interface (EVlink module)
Notes
(1) PTC/NTC/J/K/Pt 100/Pt 1000/Ni 120/0-20 mA/4-20 mA/0-10 V/2-10 V.
(2) not available if the analogue input is configured for Pt 100/Pt 1000/Ni 120 3 wires.
(3) available in the models with 12-24 VAC/DC power supply if fed with 24 VAC/DC power.

Available options
Plug-in screw terminal blocks (fixed-screw as standard).
