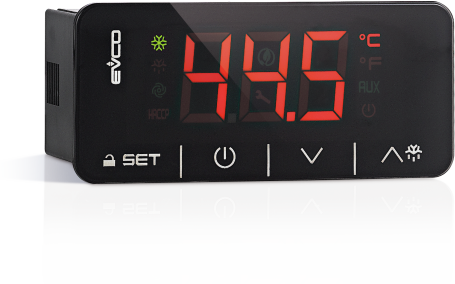

EV3B94

EV3B94 is a compact solution for controlling DHW heat-pump heaters, managing stratification inside the tank and the anti-legionella function.

It is equipped with an electro-mechanical relay enabling direct control of medium-power compressors, thus avoiding the use of contactors.
EV3B94 is available in a standard 74 x 32 mm format with 4 capacitive touch keys. It features an elegant design, a larger than average display to facilitate reading and a completely flat IP65 front making it easy to clean.

Installation is by panel, with snap-in brackets.

Technical Features

Controller for DHW heat-pump heaters
EV3B94N9
Power supply
115-230 VAC
Analog inputs
Upper DHW tank probe (PTC/NTC/Pt 1000)
Evaporator probe (PTC/NTC/Pt 1000)
Configurable inputs (analogue or digital)
Analogue input (PTC/NTC/Pt 1000) or digital input (high pressure switch)
Digital inputs
Photovoltaic supplement
Multi-purpose
Digital outputs (electromechanical relays; A res. @ 250 VAC)
Compressor 16 A
Defrost fan 8 A
Evaporator fans 5 A
Heaters 5 A
Other features
Anti-legionella function
Visit our downloads page to view technical characteristics or contact our technical sales department for more information, prices or with your specifications.

Also, you can reach us on +44 (0) 1865400514
