JP7 and JP6 Thermal Protectors

JP7 and JP6 Thermal Protectors feature world’s only “Dual Spring Mechanism”. They also have stronger contact pressure, lower constant resistance ensuring longer stability and reliability.
This series is compact in size and has larger contact capacity 8A 125V AC, 5A 250V AC (resistive).
Those are used as Overheat/Overload protectors for Alternating Current devices (see EP2 Series for DC devices) in a wide range of applications such as:
Type Specifications Applications
JP61
JP62
JP71

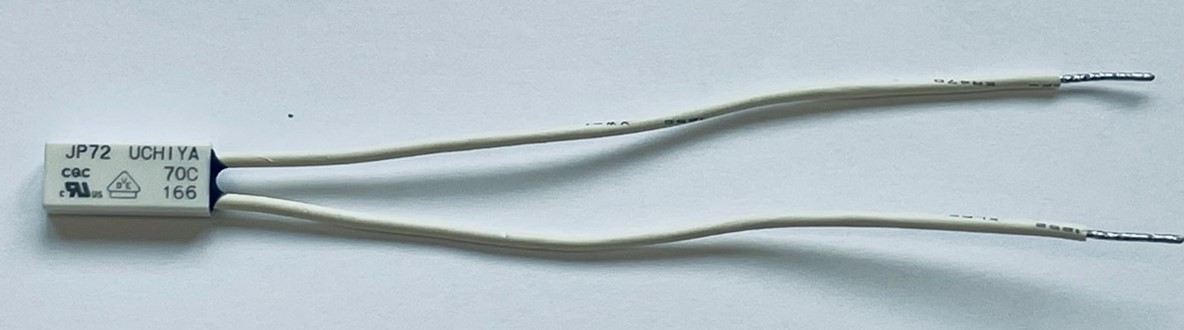

JP72
 Operating Temperature: 60-150ºC (5ºC step)
Tolerance: ±5ºC; ±7 ºC; ±10 ºC
Differential: 40 ± 15K (standard)
Breaking Capacity:
- 8A 125V AC 6000 cycle (resistive)
- 5A 250V AC 10000 cycle (resistive)
 Motors, transformers
Solenoids
Lighting Fixtures
Heating Appliances
Resistors, Chargers
Projectors

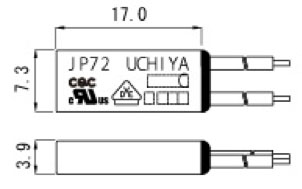

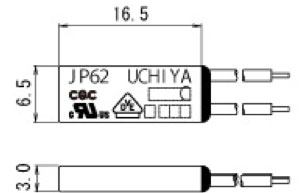

Measurements:
Visit our downloads page to view technical characteristics or contact our technical sales department for more information, prices or with your specifications.

Also, you can reach us on +44 (0) 1865400514
