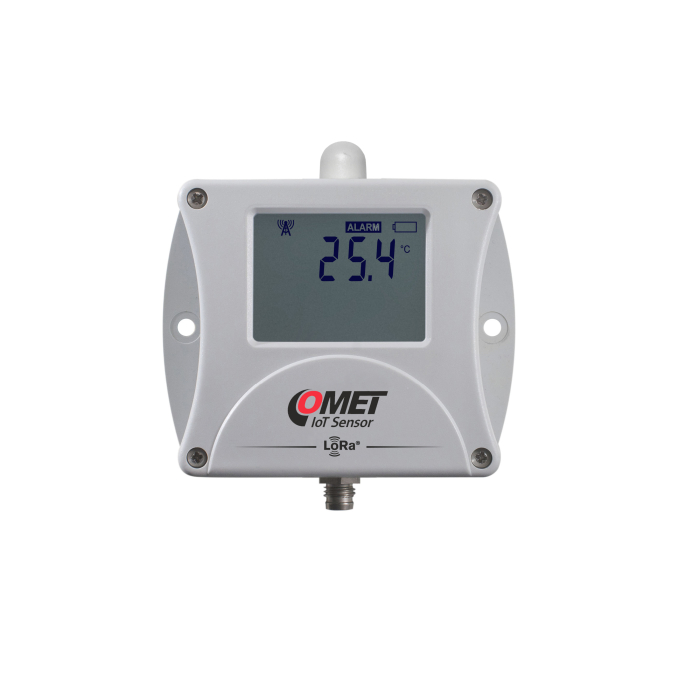

W0911 IoT wireless thermometer for external probe, LoRaWAN network

The W0911 sensor with LoRaWAN network output measures temperature from an external Pt1000 probe on the cable and can be installed directly in the measured environment thanks to its IP65-rated enclosure. LoRa devices are powered by a replaceable battery with a lifespan of up to 10 years (3 years standard).

  • Wireless transmission of measured values and alarm states
  • Battery-powered with low battery indicator (battery life up to 10 years)
  • Remote device configuration via COMET Cloud
  • IP65-rated enclosure
  • Calibration certificate with declared metrological traceability of standards according to CSN EN ISO/IEC 17025
  • Preconfigured Gateway available as an accessory at extra cost. For ease of use, we offer the pre-configured LoRaWAN Gateway, which is fully ready for communication with COMET Cloud and our sensors. This option simplifies the setup process and saves time for users



With a newly purchased wireless sensor with LoRaWAN connectivity, you receive 1 year of COMET Cloud for free; an additional year of operation in COMET Cloud then requires 1 credit.

The sensor is preconfigured for COMET Cloud. If you want to connect it to your own cloud, please state this in your order. Only then will you receive the necessary access details.



Measured values are transmitted wirelessly at adjustable intervals (from 5 minutes to 24 hours) to the COMET Cloud storage, where they are accessible to users via computer or mobile device. The sensors offer remote configuration from the COMET Cloud and feature the capability to monitor up to two alarm thresholds, with any exceedance signaled by an alert sent to the user.



Enquire for pricing...
SHARE VIA

TEMPERATURE SENSOR – external probe Pt1000

Measuring range -90 to +260 °C
Accuracy ±0.2 °C in the range -90 to +100 °C; ±0.2 % from reading from +100 to +260 °C
Resolution 0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) 10 minutes

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels 1x external temperature probe
Message transmission interval adjustable 5-10-15-20-30 minutes, 1-2-3-4-6-8-12-24 hours
Operating frequency Europe 863-870 MHz
Maximum transmission power 25 mW (14 dBm)
Typical range of transmitter 15 km in the field, 2 km in the city (sensor in building)
Antenna internal, gain 2,15 dBi
Maximum receiver sensitivity -136 dBm @BW=125 kHz, SF=12
Power Lithium battery 3.6 V, AA size
Protection class IP65
Dimensions 126 x 89 x 40mm
Weight (including batteries) 150g
Warranty 3 years

Countries using the LoRaWAN EU 868 frequency plan
