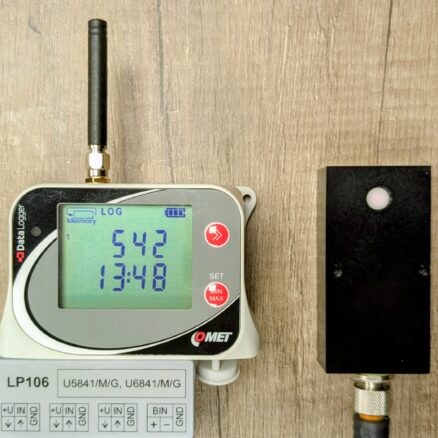

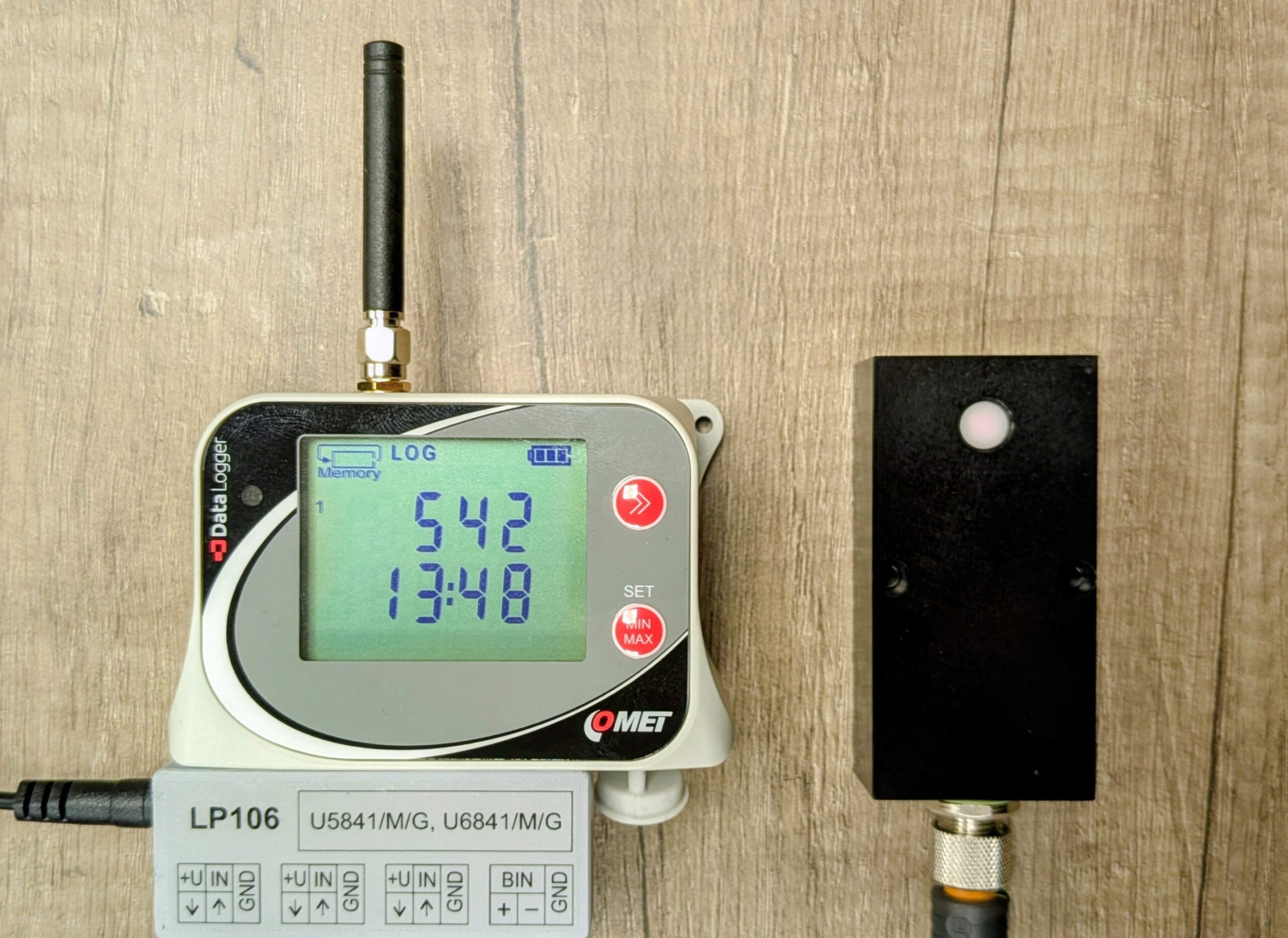

We supply a kit to measure and log Lux and UV to the Comet cloud via a U6841GSIM 4G Data logger, an LP106 and 6139 sensors, the system can monitor up to three channels of either UV, LUX, or a combination of all three. For Lux measurements the 4000 lux sensor is the most common.
TECHNICAL DATA
Measuring range 0 – 100 mW/cm², 0 – 200 mW/cm² and 0 – 5000 mW/cm²
Dimensions 80 x 40 x 20 mm
Weight 150 g
Connector 5-pole M12
Operation temperature 0 to 60 °C
Storage temperature -10 to 60 °C
Humidity < 80% non-condensing
SENSOR SPECTRAL RANGES AVAILABLE
UVC 200 – 280 nm
UVB 280 – 315 nm
UVA 315 – 400 nm
UVA+ 330 – 450 nm
UVBB (broad-band) 230 – 400 nm
VISB 400 – 480 nm
LUX 380 – 780 nm, V(λ)
