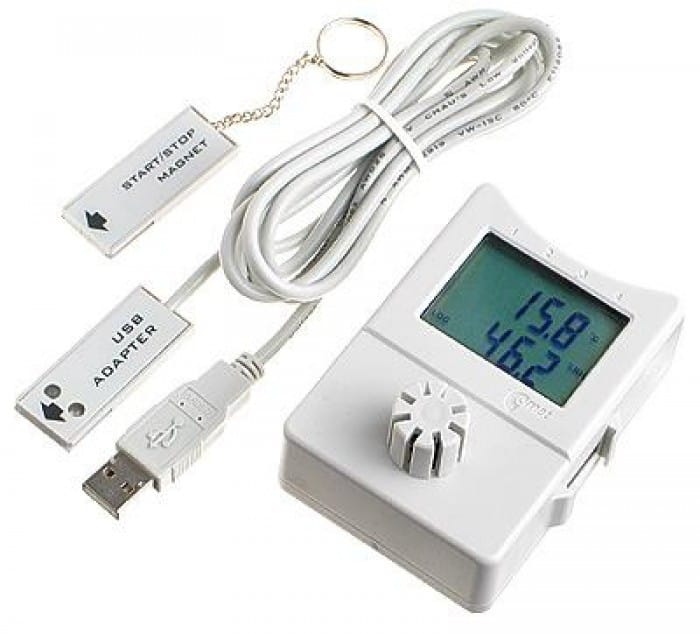

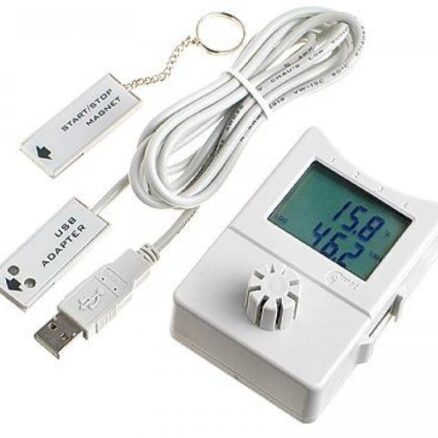

S3120E Thermometer hygrometer data logger - Economy Version

S3120E Thermometer hygrometer data logger – Economy Version

This Economy data logger is designed for record of temperature and humidity. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM or Ethernet interface by means of a proper communication adapter.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

For communication with the PC must be from Optional accessories ordered USB adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.

Enquire for pricing...

Measured value

Temperature

Relative humidity

Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -30 to +70 °C

Accuracy ±0.6°C (-30 to +30°C);
±0.8°C (+30 to +70°C)

Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH

Accuracy ±3 % RH from 5 to 95 % at 23 °C

Resolution 0.1% RH

DEW POINT

Measuring range -60 to +70 °C

Accuracy ±2 °C at ambient temperature T <25 °C and RH >30 %

Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +70 °C

Channels internal temperature and humidity sensor

Memory 32,000 values (non-cyclic record)

Recording interval adjustable from 10 s to 24 h

Display and alarm refresh each 10 s

Recording mode noncyclic – data logging stops after filling the memory
cyclic – after filling memory oldest data is overwritten by new

Real time clock year, leap year, month, day, hour, minute, second

Power lithium battery 3.6 V; size AA

Battery life 6 years

Protection class IP30

Dimensions 93 x 64 x 29 mm

Weight (including batteries) approx. 115 g

Warranty 3 years
