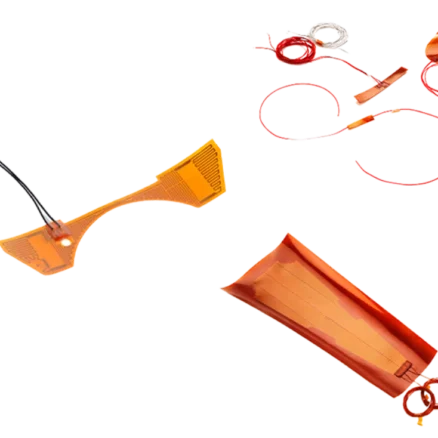

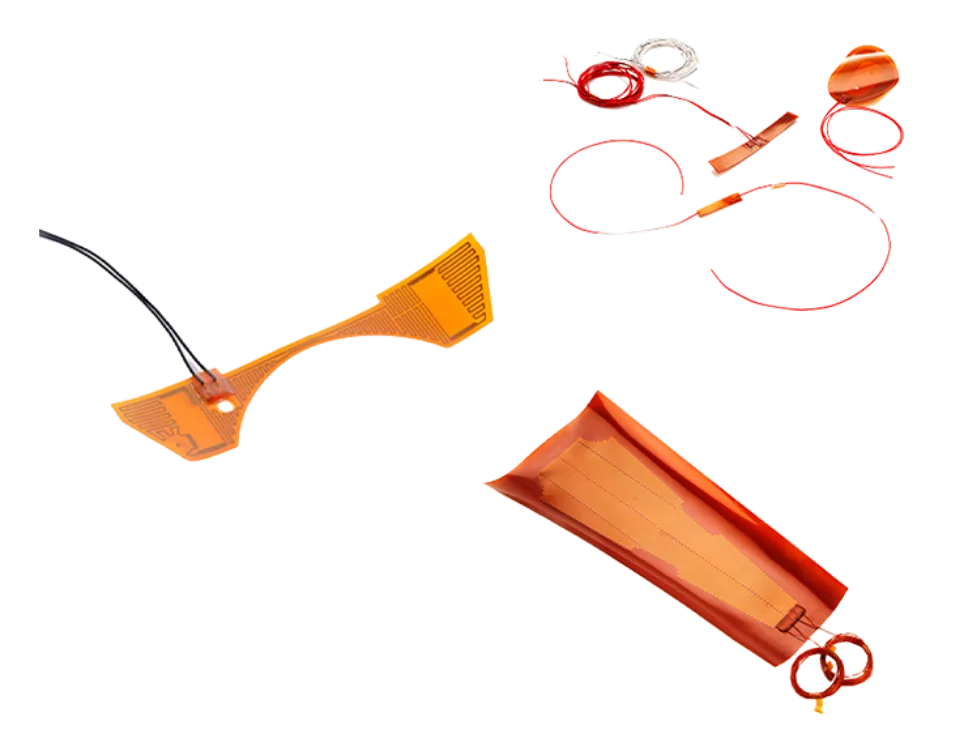

Qualification Model (QM) Etched Foil Kapton Heaters

These heaters are provided in full compliance with the applicable ESCC specification’s
prescribed materials and manufacturing; a minimal set of verification steps
(i.e. Functional visual inspection, Production Control tests and #ESCC-compliant Final
Room Temperature Electrical Measurements) is performed, to ensure its suitability for
functional and environmental qualification testing.

Enquire for pricing...

Insulation – Polyamide + Acrylic
Resistance Tolerance – +/- 10%
Maximum Power density @ 100C – 1W/cm^2
Configuration – Single layer and single circuit
Thickness – 0.2mm max.
Patch – Acrylic
Welded wires – 3901-020-03, AWG26, Unshielded, Red, 500mm
Minimum Op. Temperature – -65C
Maximum Op. Temperature – 150C
Minimum Bend Radius – 1mm

Custom heaters can be designed and quoted, also available an off the shelf range of QM qualification model heaters for test and qualification purposes


P/N heaters	Size (Y)	Size (X)	Lead exit size	Net heating area	Resistance @22C, wire included	Wire	Wire Length	Typical Power
	mm	mm	mm x mm	cm2	Ohms	AWG	mm	W

SC012037Q	12.5	37,5	10×11	2.63	313.6	26	500	2.5 at 28V
SC012075Q	12.5	75	10×11	6.56	247.2	26	500	3.2 at 28V
SC012125Q	12.5	125	10×11	11.81	139.4	26	500	5.6 at 28V
SC025025Q	25	25	10×14	3.61	392	26	500	2.0 at 28V
SC025037Q	25	37.5	10×14	6.49	239.1	26	500	3.3 at28V
SC025050Q	25	50	10×14	9.36	172	26	500	4.6 at 28V
SC025075Q	25	75	10×14	15.29	110.2	26	500	7.1 at 28V
SC025100Q	25	100	10×14	20.97	81.1	26	500	9.7 at 28V
SC037037Q	37.5	37.5	10×14	11.18	150.1	26	500	5.2 at 28V
SC037050Q	37.5	50	10×14	15.44	109.4	26	500	7.2 at 28V
SC037100Q	37.5	100	10×14	33.27	52.5	26	500	14.9 at 28V
SC050050Q	50	50	10×14	21.36	80.2	26	500	9.8 at 28V
SC050075Q	50	75	10×14	33.36	52.3	26	500	15 at 28V
