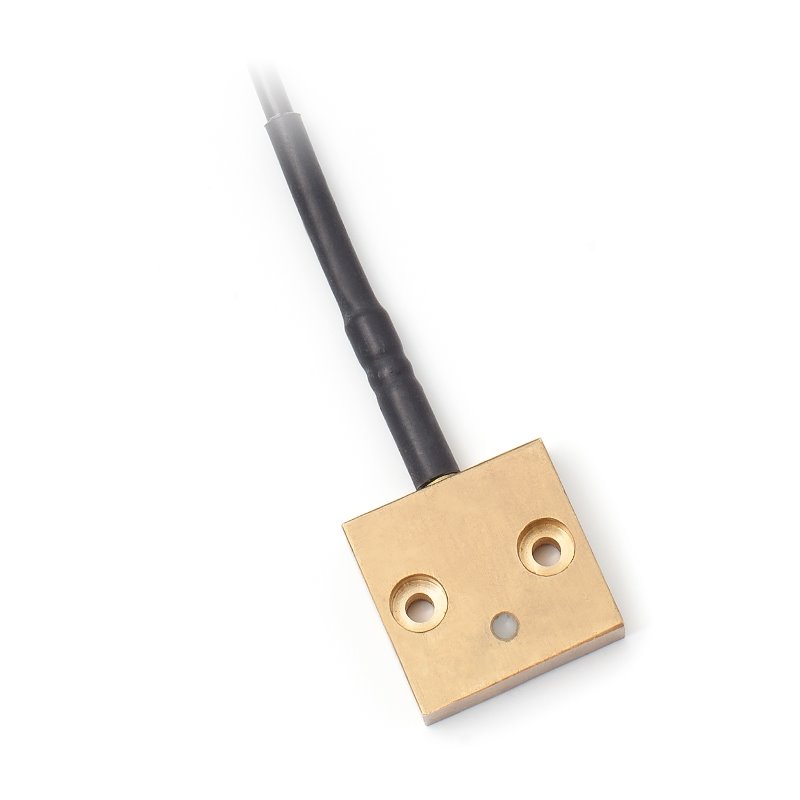

ktr 164/r measuring the temperature of coolants batteries or other parts with planner surface

The KTR 164/R resistance temperature sensor is designed to measure temperature of solid substances. In the application segment of Railway Vehicles, the sensor is intended to be used for measurement of temperature of cooler, accumulator or other parts with a flat surface.

The temperature range is -40 °C to 120 °C and these limits must not be exceeded even for a brief period. The sensors can be used for any control systems compatible with types of sensing elements listed in the table of technical parameters. The sensors meets ingress protection IP 67 according to EN 60529, as amended.

The sensors are intended for operation in chemically non-aggressive environment.

Enquire for pricing...

Sensor type KTR 164/R
-Type of sensing element all types
-Temperature range -40 °C to 120 °C (the measuring range can be
extended – see the modifications)
-Ingress protection IP 67 in accordance with EN 60529

Case dimension 32 x 30 x 10 mm
-Case material brass

Lead-in cable RADOX shielded 2 x 0.5 mm2
-RADOX shielded 4 x 0.5 mm2
-Wire resistance 0.07 Ω for 1 m of cable for 2-wire connection

Insulation resistance > 200 MΩ at 500 VDC, 25 °C ± 3 °C,, humidity < 80%

Shock and vibration tests category 1, class B in accordance with EN 61373

Insulation test 4 kVDC for time 1 minute in accordance with EN 50155

Mean working life ≈ MTTF * 1.95 x 106 hrs

The type tests are carried out by a notified body according to EN 50155
standard, as amended Railway applications – Electronic equipment used
on rolling stock, Art. 12.2.9, 12.2.11

Insulation test in accordance with EN 50155, as amended
Shock and Vibration tests in accordance with EN 61373, as amended

The product meets parameters in accordance with EN 45545-2, as amended
Fire protection on railway vehicles – Part 2: Requirements for fire behavior
of materials and components. The materials also meet the requirements
of the NFPA 130 fire safety standard, as amended.
