ktr 107 for secondary temperature measurements of electric resistors of electrodynamic breaks

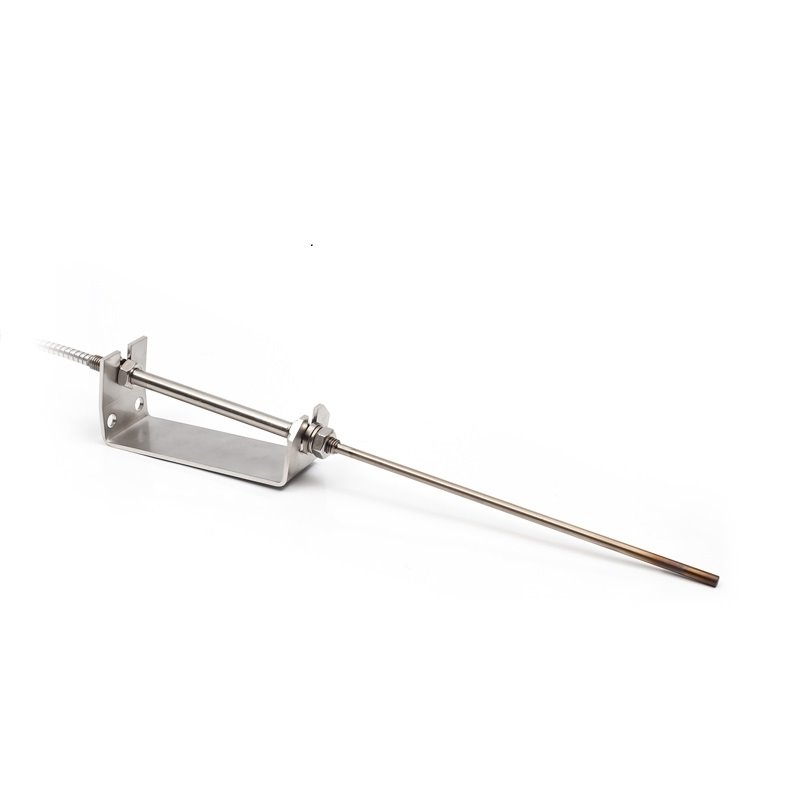

The KTR 107 resistance temperature sensor is designed to measure temperature of gaseous or liquid or solid substances. In the application segment of Railway Vehicles, the sensor is intended to be used for secondary measurement of temperature of electrical resistors of electrodynamic brakes of electric and diesel-electric locomotives.

The temperature range is -40 °C to 400 °C and these limits may be exceeded for a brief period. The sensors can be used for any control systems compatible with types of sensing elements listed in the table of technical parameters. The sensors meets ingress protection IP 65 according to EN 60529, as amended.

The sensors are intended for operation in chemically non-aggressive environment.

Enquire for pricing...

Sensor type KTR 107
-Type of sensing element Pt 100/3850; Pt 1000/3850
-Temperature range -40 °C to 400 °C
-Ingress protection IP 65 in accordance with EN 60529

Case dimension 6 ± 0.1 mm
-Length of case L 10 to 500 mm
-Thread / OK M 10 x 1 / OK 17
-Case material stainless steel DIN 1.4301

Lead-in cable silicone shielded 2 x 0.34 mm2
-silicone shielded 4 x 0.15 mm2
-Wire resistance 0.11 Ω for 1 m of cable for 2-wire connection

Time response τ0.5 < 9 s (in flowing water at 0.4 ms-1)

Accessories metal holder

Insulation resistance > 200 MΩ at 500 VDC, 25 °C ± 3 °C,, humidity < 80%

Shock and vibration tests category 2 in accordance with EN 61373

Insulation test 3 kVDC for time 1 minute in accordance with EN 50155

Mean working life ≈ MTTF * 1.2 x 105 hrs, based on a theoretical calculation

The type tests are carried out by a notified body according to EN 50155
standard, as amended Railway applications – Electronic equipment used
on rolling stock, Art. 12.2.9, 12.2.11

Insulation test in accordance with EN 50155, as amended
Shock and Vibration tests in accordance with EN 61373, as amended

The product meets parameters in accordance with EN 45545-2, as amended
Fire protection on railway vehicles – Part 2: Requirements for fire behavior
of materials and components.
