ktr 069/r measuring temperature of cooling air of traction electric motors

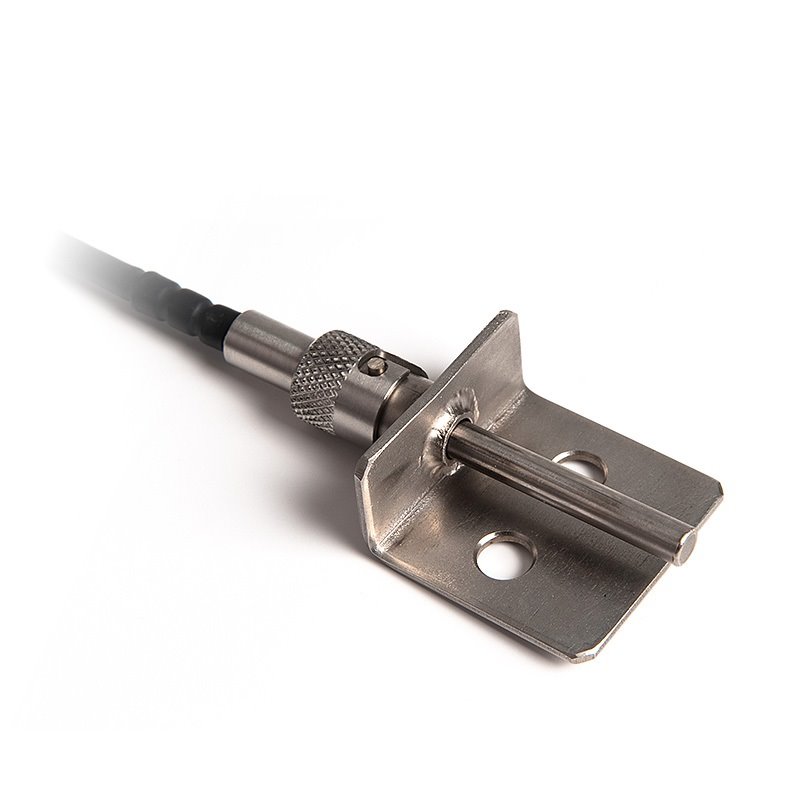

The KTR 069/R temperature sensor is designed to measure temperature of gaseous, liquid or solid substances. In the application segment of Railway Vehicles, it has been produced to measure temperature of cooling air of traction electric engines of shunting locomotives. A special adapter with a bayonet mount prevents the sensor from loosening.
The temperature range is -40 °C to 120 °C and these limits must not be exceeded even for a brief period. The case of the temperature sensor and the adapter with bayonet mount is made of stainless steel. The sensor can be used for any control system compatible with types of sensing elements listed in the table of technical parameters. The sensor meets ingress protection IP 67 according to EN 60529 standard, as amended.
The sensor is intended for operation in chemically non-aggressive environment.

Enquire for pricing...

Sensor type KTR 069/R
-Type of sensing element all types
-Temperature range -40 °C to 120 °C (the measuring range can be
extended – see the modifications)
-Ingress protection IP 67 in accordance with EN 60529

Case dimension 6 ± 0.1 mm
-Length of case L 10 to 100 mm
-Case material stainless steel DIN 1.4301

Lead-in cable RADOX shielded 2 x 0.5 mm2
-RADOX shielded 4 x 0.5 mm2
-Wire resistance 0.07 Ω for 1 m of cable for 2-wire connection

Time response τ0.5 < 9 s (in flowing water at 0.4 ms-1)

Accessories special holder with bayonet mount

Insulation resistance > 200 MΩ at 500 VDC, 25 °C ± 3 °C,, humidity < 80%

Shock and vibration tests category 2, class B in accordance with EN 61373

Insulation test 4 kVDC for time 1 minute in accordance with EN 50155

Mean working life ≈ MTTF * 1.95 x 106 hrs

The type tests are carried out by a notified body according to EN 50155
standard, as amended Railway applications – Electronic equipment used
on rolling stock, Art. 12.2.9, 12.2.11

Insulation test in accordance with EN 50155, as amended
Shock and Vibration tests in accordance with EN 61373, as amended

The product meets parameters in accordance with EN 45545-2, as amended, Fire protection on railway vehicles – Part 2: Requirements for fire behavior of materials and components. The materials also meet requirements of the NFPA 130 fire safety standard, as amended
