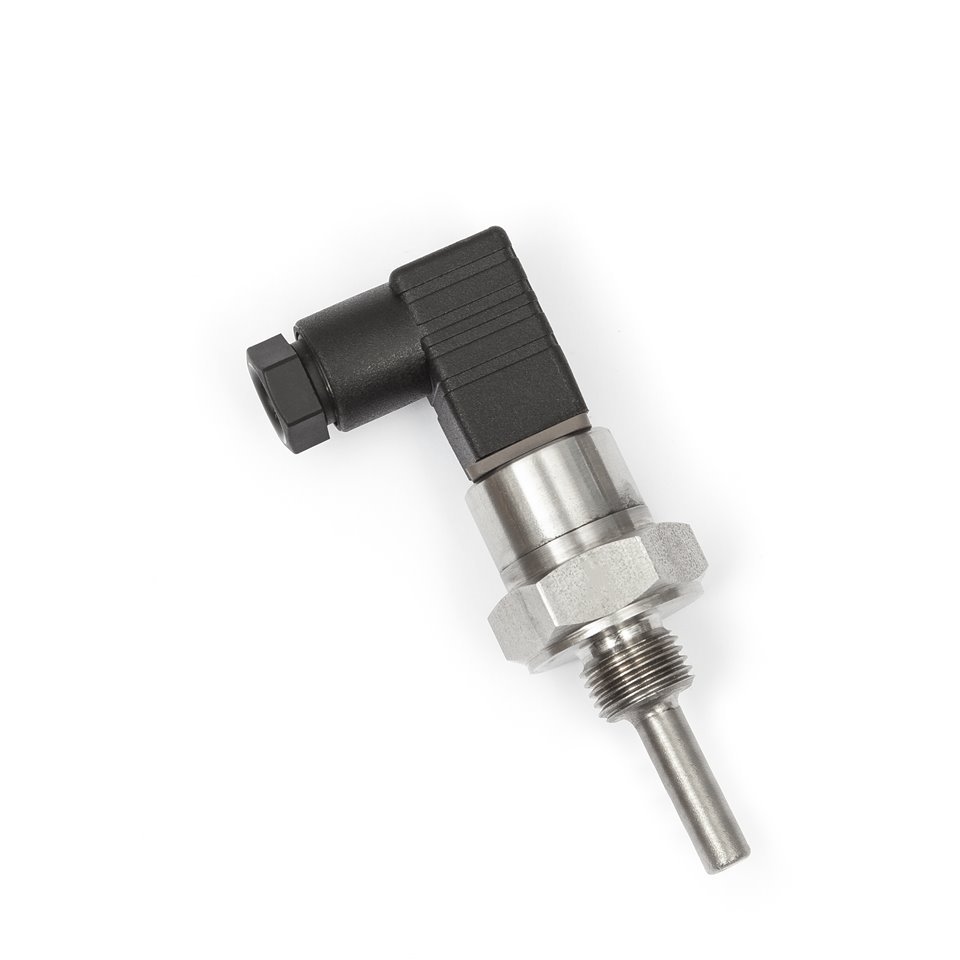

KTR 021 TEMPERATURE SENSOR WITH CASE ∅ 6 mm WITH THREAD

The KTR 021 resistance temperature sensor is designed to measure temperature of gaseous or liquid substances. In the application segment of Railway Vehicles, it is used for example for specific needs of temperature measurement on engines, both compression ignition engines and electric engines, and on gearboxes or machines and equipment, for which operation vibrations are typical.

The temperature range is -50 °C to 150 °C and these limits must not be exceeded even for a brief period. The sensor can be used for any control systems compatible with types of sensing elements listed in the table of technical parameters. The sensor meets ingress protection IP 67 according to EN 60 529 standard, as amended.

The sensor is intended for operation in chemically non-aggressive environment.

Enquire for pricing...

Sensor type KTR 021
-Type of sensing element all types
-Temperature range -50 °C to 200 °C
-Ingress protection IP 67 in accordance with EN 60529

Diameter of case 6 ± 0.1 mm
-Length of case L 20 to 350 mm
-Thread / OK M 10 x 1, M12 x 1.5, M20 x 1.5, G ½“ and another according customer / OK according thread type
-Case material stainless steel DIN 1.4301

Connector according to DIN 43650

Time response τ0.5 < 9 s (in flowing water at 0.4 ms-1)

Insulation resistance > 200 MΩ at 500 VDC, 25 °C ± 3 °C, humidity < 80%

Shock and vibration tests category 2 in accordance with EN 61373

Insulation test 1,5 kVDC for time 1 minute in accordance with EN 50155

Mean working life ≈ MTTF * 1.2 x 105 hrs, based on a theoretical calculation

The type tests are carried out by a notified body according to EN 50155 standard, as amended, Railway applications – Electronic equipment used on rolling stock, Art. 12.2.9, 12.2.11

Insulation test in accordance with EN 50155, as amended
Shock and vibration tests in accordance with EN 61373, as amended

The product meets parameters in accordance with EN 45545-2, as amended, Fire protection on railway vehicles – Part 2: Requirements for fire behaviour of materials and components. The materials also meet requirements of the NFPA 130 fire safety standard, as amended.
