KTG 6/R and KTG 6E/R TEMPERATURE SENSOR THREAD M6, OK 12

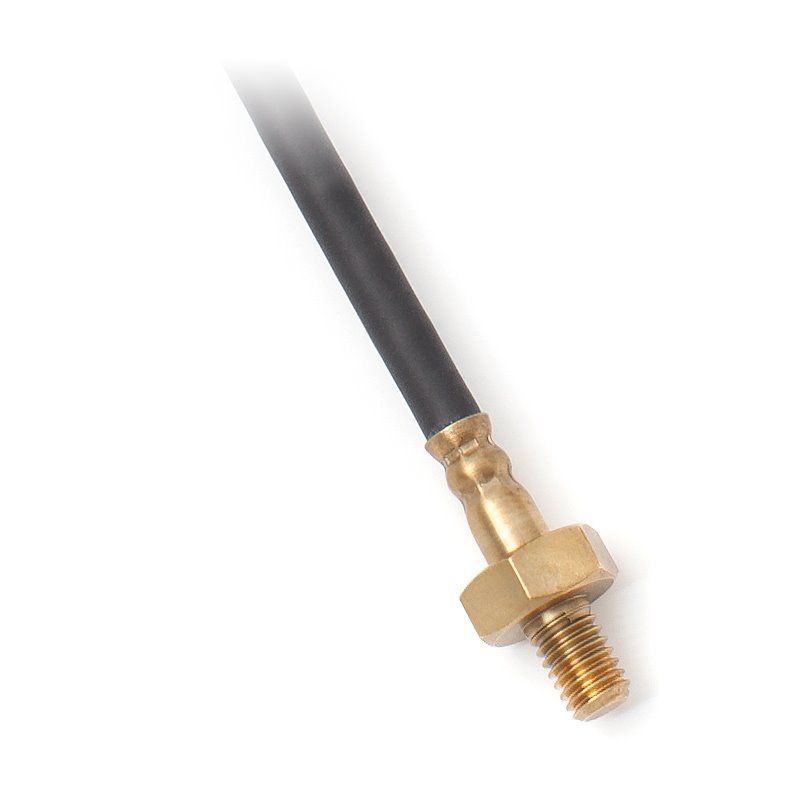

The KTG 6/R and KTG 6E/R temperature sensors are designed to measure temperature of solid substances. In the application segment of Railway Vehicles, the temperature sensors are used for example to measure surface temperature of baseboards of converters and coolers of performance elements of electric locomotives (drive units) where, due to the lack of space, the supply cable is needed to guide at a right angle to the base board and in close proximity to the performance elements under power.The sensor is attached to the surface of measured parts with the thread M6, which is s part of the sensor.

The temperature range of temperature sensors KTG 6/R and KTRG 6E/R is -40 °C to 120 °C, and these limits must not be exceeded even for a brief period. The sensors can be used for any control systems compatible with types of sensing elements listed in the table of technical parameters. The sensor meets ingress protection IP 67 according to EN 60529 standard, as amended.

The temperature sensors are intended for operation in chemically non-aggressive environment.

Enquire for pricing...

Sensor type KTG 6/R KTG 6E/R
-Type of sensing element Pt, Ni, NTC, TCx
-Temperature range -40 °C to 120 °C (the measuring range can be extended – see the modifications)
-Ingress protection IP 67 in accordance with EN 60529

Length of thread 9 mm
-Thread / OK M 6 / OK 12
-Case material brass

Lead-in cable RADOX shielded 2×0.5 mm2
-Wire resistance 0.142 Ω ( KTG 6/R ) 0.16 Ω ( KTG 6E/R ) for 1 m of cable for 2-wire connection

Time response τ0.5 < 4 s (in flowing water at 0.4 ms-1)

Insulation resistance > 200 MΩ at 500 VDC, 25 °C ± 3°C, humidity < 80%

Shock and vibration tests category 2 in accordance with EN 61373

Insulation test 4 kVDC ( KTG 6/R ) 6 kVDC ( KTG 6E/R ) for time 1 minute in accordance with EN 50155

Mean working life ≈ MTTF * 8.2 x 105 hrs

The Type tests are carried out by a notified body according to EN 50155 standard, as amended, Railway applications – Electronic equipment used on rolling stock, Art. 12.2.9, 12.2.11

Insulation test in accordance with EN 50155, as amended
Shock and vibration tests in accordance with EN 61373, as amended

The product meets parameters in accordance with EN 45545-2, as amended, Fire protection on railway vehicles – Part 2: Requirements for fire behavior of materials and components. The materials also meet requirements of the NFPA 130 fire safety standard, as amended.
