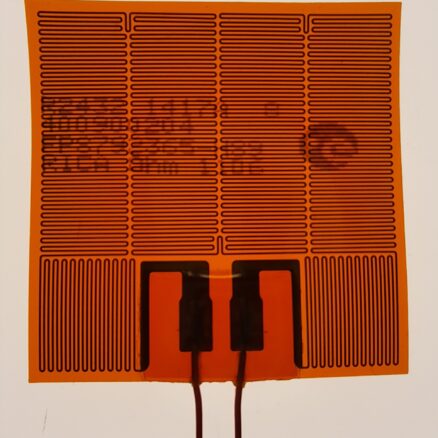

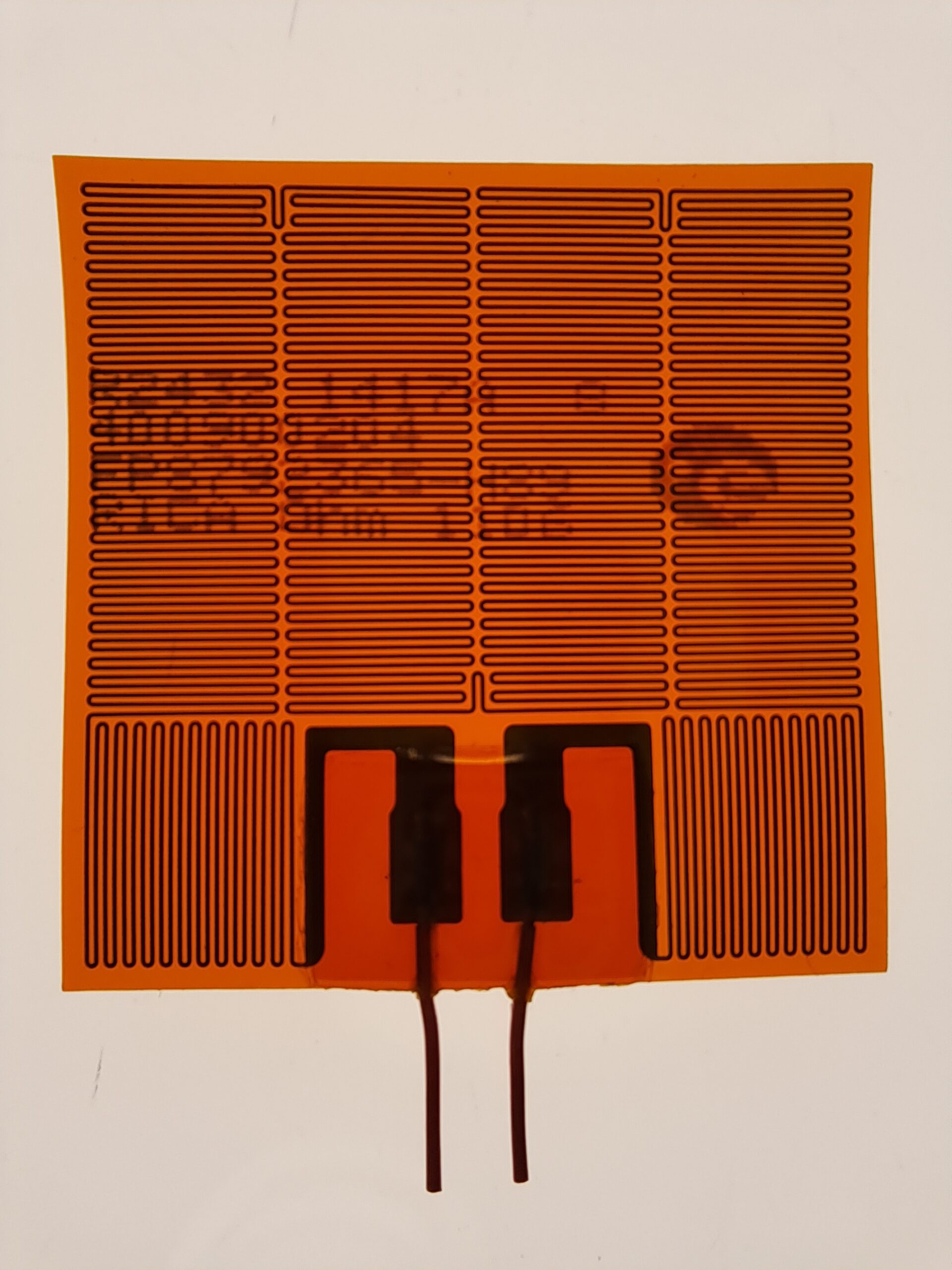

ESCC Flight Model (FM) Kapton Etched Foil Heaters

Available from stock, fully ESA qualified space flight heaters, covering all the requirements of ESCC specifications.

Enquire for pricing...
SHARE VIA
  • Insulation – Polyamide + Acrylic
  • Resistance Tolerance – +/- 10%
  • Maximum Power density @ 100C – 1W/cm^2
  • Configuration – Single layer and single circuit
  • Thickness – 0.2mm max.
  • Patch – Acrylic
  • Welded wires – 3901-020-03, AWG26, Unshielded, Red, 500mm
  • Minimum Op. Temperature – -65C
  • Maximum Op. Temperature – 150C
  • Minimum Bend Radius –  1mm



Custom heaters can be designed and quoted, also available an off the shelf range of QM qualification model heaters for test and qualification purposes

P/N heaters Size (Y) Size (X) Lead size exit
 Net heating area Resistance @22C, wire included Wire Wire Length Typical Power
mm mm mm x mm cm2 Ohms AWG mm W
SC012037F 12.5 37,5 10×11 2.63 313.6 26 500 2.5 at 28V
SC012075F 12.5 75 10×11 6.56 247.2 26 500 3.2 at 28V
SC012125F 12.5 125 10×11 11.81 139.4 26 500 5.6 at 28V
SC025025F 25 25 10×14 3.61 392 26 500 2.0 at 28V
SC025037F 25 37.5 10×14 6.49 239.1 26 500 3.3 at28V
SC025050F 25 50 10×14 9.36 172 26 500 4.6 at 28V
SC025075F 25 75 10×14 15.29 110.2 26 500 7.1 at 28V
SC025100F 25 100 10×14 20.97 81.1 26 500 9.7 at 28V
SC037037F 37.5 37.5 10×14 11.18 150.1 26 500 5.2 at 28V
SC037050F 37.5 50 10×14 15.44 109.4 26 500 7.2 at 28V
SC037100F 37.5 100 10×14 33.27 52.5 26 500 14.9 at 28V
SC050050F 50 50 10×14 21.36 80.2 26 500 9.8 at 28V
SC050075F 50 75 10×14 33.36 52.3 26 500 15 at 28V
