Cometeo Solar Shield

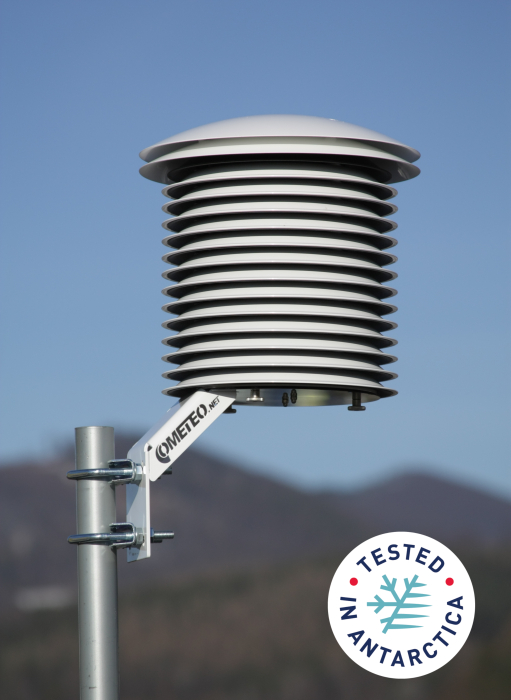

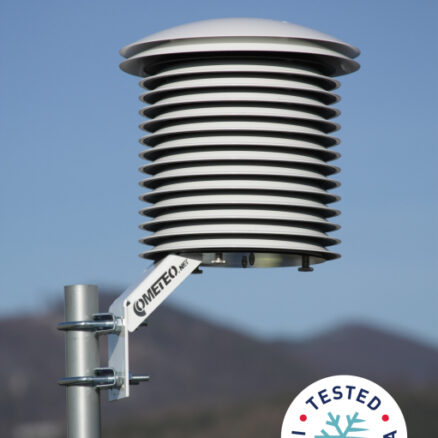

The Cometeo professional solar shields have been designed so that you can mount temperature / humidity and barometric sensors outside, the unit protects the items from rain and solar radiation, and also maximises airflow around the instruments, maintaining the most accurate readings in an outdoor environment. We are also proud that the unit has been certified for use in the Arctic.

Enquire for pricing...

Multi-plate Radiation Shield made from highly reflective ASA plastic on the outside and matt black in the inside to minimise internal reflections.

Temperature operating range -40 to +65 °C
Relative humidity operating range 0 to 100 %RV
Storage temperature range -40 to +65 °C
Storage relative humidity range 0 to 100 %RV (no condensation)
Diameter of the installed probe 13 to 18 mm
Fixing the shield on a pipe with a diameter of 20 to 50 mm

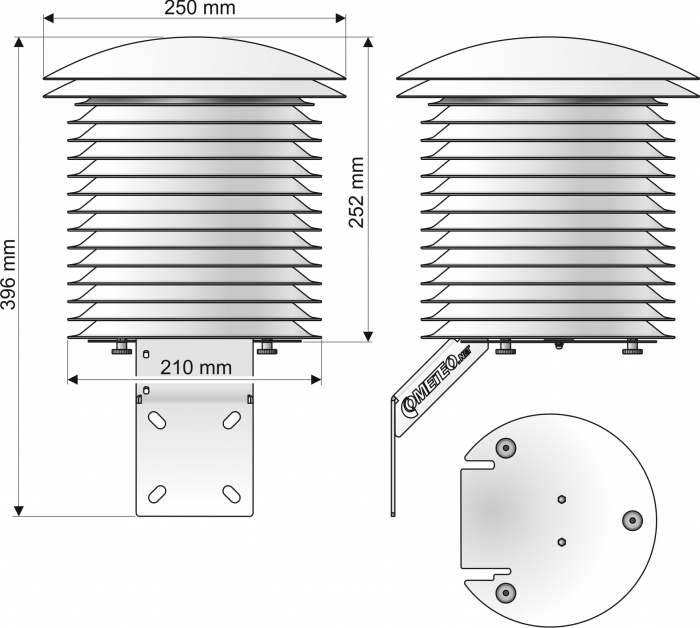

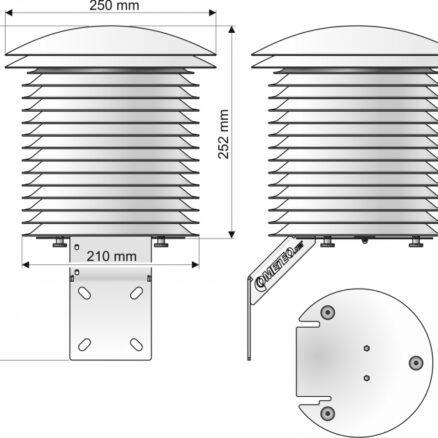

Dimension 250 mm (diameter), 396 mm (height)
Weight approximately 2.4 kg (without mounting clamps)
Material UV stabilized ASA, stainless steel
Warranty 3 years

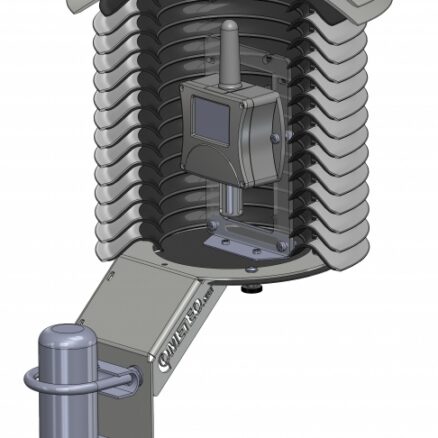

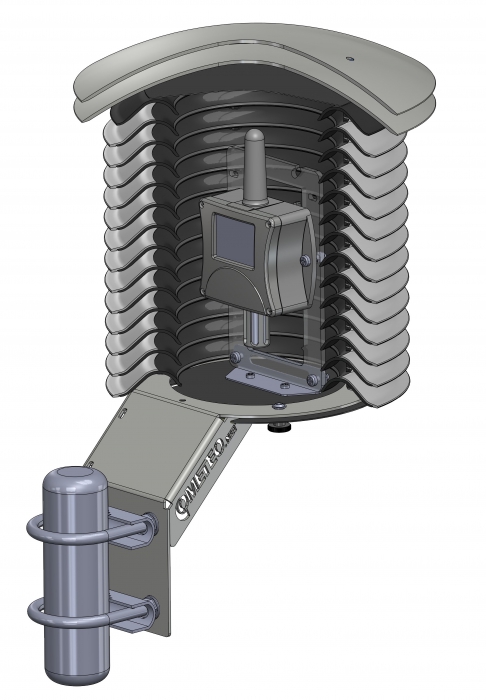

F8000 – Large 210mm diameter so that you can install one of the LoRaWAN sensors or wired transmitter inside
F8001 – Single bushing to take one sensor inside
F8004 – Version to take four sensors in one device
