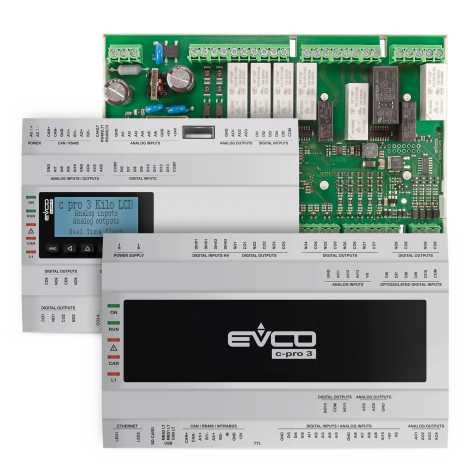

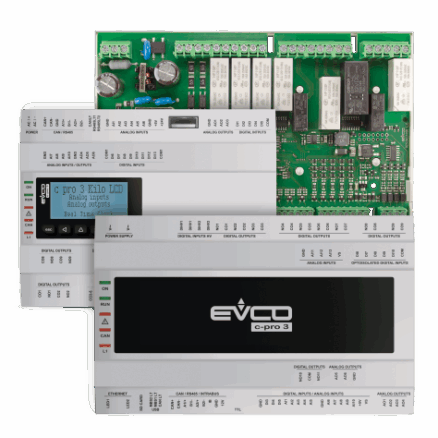

C-Pro AHU

c-pro 3 AHU is a highly configurable controllers for the management of single or dual-flow (with heat recovery) air handling units operating with three coils and an additional pre-heating coil. The coils can be electrical, water or direct expansion.
The controller is able to manage the return fan and the supply fan independently (up to 3 speeds or modulating according to the supply static pressure and according to the room air quality). Options include the management via serial port of the modulating fan (supply and return) by means of dedicated EVCO inverters or of Fan Walls with up to 16 EC fans for each flow.
The controller can manage the external damper, the bypass damper and the mixing chamber damper, as well as the humidifier, both in “on-off” and modulating mode.
Available in a 8 or 10 DIN-module format with up to 40 I/Os, the controller is compatible with a wide range of state-of-the-art user interfaces for panel or wall installation. Some of them have built-in temperature and humidity sensors.

Enquire for pricing...
SHARE VIA



EPK4BHQ1AH EPK4DHQ1AH EPG9OHX1AH EPG9ORE1AH EPG9BHX1AH
VERSION
In a plastic housing, blind ✓ – – – ✓
In a plastic housing, with built-in user interface ✓ – – –
Blind, open frame – – ✓ ✓ –
FORMAT
8 DIN modules ✓ ✓ – – –
10 DIN modules – – ✓ ✓ ✓
DISPLAY
LCD graphic display. 6 keys – ✓ – – –
INSTALLATION
On a DIN rail ✓ ✓ ✓ ✓ ✓
CONNECTIONS
Fixed screw terminal blocks – – ✓ ✓ ✓
Plug-in screw terminal blocks ✓ ✓ – – –
POWER SUPPLY
24 VAC/DC ✓ ✓ – – –
115… 230 VAC – – ✓ ✓ ✓
CONFIGURABLE INPUTS (ANALOGUE OR DIGITAL)
Analogue input (PTC/NTC/Pt 1000) or digital input (dry contact) 4 4 5 5 5
Analogue input (PTC/NTC/Pt 1000/0-5 V/0-10 V/0-20 mA/4-20 mA) or digital input (dry contact) 6 6 5 5 5
DIGITAL INPUTS (configurable)
24 VAC/DC 11 11 – – –
24 VAC/DC for pulse trains up to 2 KHz 2 2 3 3 3
High voltage – – 2 2 2
ANALOGUE OUTPUTS (configurable)
0-10 V 2 2 – – –
0-10 V/PWM 2 2 4 4 4
0-20 mA/4-20 mA/0-10 V 2 2 – – –
DIGITAL OUTPUTS electro-mechanical relays; A res. @ 250 VAC (configurable)
2 A SPST – – 2 2 2
3 A SPST 9 9 5 5 5
3 A SPDT 2 2 1 1 1
8 A SPST – – 1 1 1
COMMUNICATIONS PORTS
MODBUS TTL – – ✓ ✓ ✓
INTRABUS – – ✓ ✓ ✓
RS-485 (MODBUS slave, BACnet MS/TP) ✓ ✓ ✓ ✓ ✓
RS-485 MODBUS master ✓ ✓ ✓ ✓ ✓
CAN ✓ ✓ ✓ ✓ ✓
USB ✓ ✓ ✓ ✓ ✓
Ethernet (MODBUS TCP, Web Server, BACnet IP) (1) ✓ ✓ ✓ ✓ ✓
OTHER STANDARD FEATURES
Clock ✓ ✓ ✓ ✓ ✓



Compatible user interfaces: EPcolor S/M/L, EPJgraph, EPJ LCD, Vgraph.
