c-pro 3 CHILL

c-pro 3 CHILL is a series of fully configurable controllers for running single- and dual-circuit air to water and water to water chillers with up to 3 compressors for each circuit.
The system is able to manage on-off compressors and on-off and modulating fans, with single or independent condensation. It can manage the pump down solenoid valve, “free cooling” and the “weekly programming” function.
Equipped with a wide variety of communications ports, the controllers can be connected with an I/O expansion and with a driver for the management of bipolar stepper electronic expansion valves.

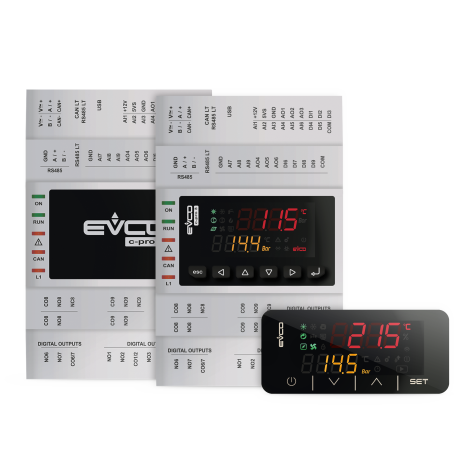

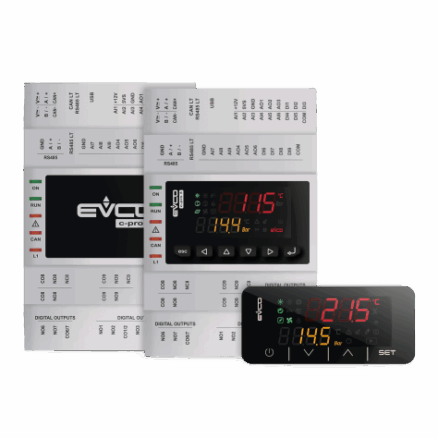

The solution is available in the following hardware formats: – c-pro 3 nano (74×32 mm) with built-in LED display, capacitive touch keys, 25 I/Os, IP65 frontal potection and panel fitting; – c-pro 3 micro (4 DIN modules) in blind version or with built-in LED user interface, up to 33 I/Os and DIN rail installation. Both formats can be connected to the stylish interface EPJ graph, which is supplied based on the specific needs for panel or for wall mounting.

Enquire for pricing...
SHARE VIA
EPN2LXP1CH EPU2BXP1CH EPU2LXP1CH
VERSION
In a plastic housing, blind – ✓ –
In a plastic housing, with built-in user interface ✓ – ✓
FORMAT
74 x 32 mm ✓ – –
4 DIN modules – ✓ ✓
DISPLAY
2-line LED display, 6 keys – – ✓
2-line LED display, 4 capacitive touch keys ✓ – –
INSTALLATION
Panel-mounted ✓ – –
On a DIN rail – ✓ ✓
CONNECTIONS
Micro-Fit connectors ✓ ✓ ✓
Removable spring terminal blocks – ✓ ✓
Plug-in screw terminal blocks ✓ ✓ ✓
POWER SUPPLY
12 VAC ✓ ✓ ✓
CONFIGURABLE INPUTS (ANALOGUE OR DIGITAL)
Analogue input (PTC/NTC/Pt 1000) or digital input (dry contact) 5 3 3
Analogue input (NTC/0-5 V ratiometric/0-10 V/0-20 mA/4-20 mA) or digital input (dry contact) 4 – –
Analogue input (PTC/NTC/Pt 1000/0-5 V/0-10 V/0-20 mA/4-20 mA) or digital input (dry contact) – 6 6
DIGITAL INPUTS (configurable)
Dry contact 3 – –
24 VAC/DC – 7 7
Dry contact for pulse trains up to 2 KHz 2 – –
24 VAC/DC for pulse trains up to 2 KHz – 2 2
ANALOGUE OUTPUTS (configurable)
0-10 V – 2 2
0-10 V/PWM – 2 2
0-10 V/PWM/phase cut 2 – –
0-20 mA/4-20 mA/0-10 V 2 2 2
DIGITAL OUTPUTS electro-mechanical relays; A res. @ 250 VAC (configurable)
3 A SPST 7 7 7
3 A SPDT – 2 2
COMMUNICATIONS PORTS
INTRABUS ✓ – –
MODBUS RS-485 slave ✓ ✓ ✓
RS-485 MODBUS master – ✓ ✓
CAN ✓ ✓ ✓
USB ✓ ✓ ✓
OTHER STANDARD FEATURES
Clock ✓ ✓ ✓
Alarm buzzer ✓ – –

Compatible user interfaces: EPJgraph, Vgraph, Vled 3 INTRABUS (nano), Vled 3 CAN (micro), compatible EEV drivers: EVDRIVE03

Compatible EEV drivers: EVDRIVE03

Compatible I/O expansions: c-pro 3 EXP micro.
