| Code | Power | Combination | Voltage | Lg |
| BT54S120212 | 1200W | 12x1000W | 230/400V | 250mm |
| BT54S150212 | 15000W | 12x1250W | 230/400V | 300mm |
| BT54S180212 | 18000W | 12x1500W | 230/400V | 360mm |
| BT54S210212 | 21000W | 12x1750W | 230/400V | 400mm |
| BT54S240212 | 24000W | 12x2000W | 230/400V | 450mm |
| BT54S300212 | 30000W | 12x2500W | 230/400V | 540mm |
| BT54S360212 | 36000W | 12x3000W | 230/400V | 635mm |

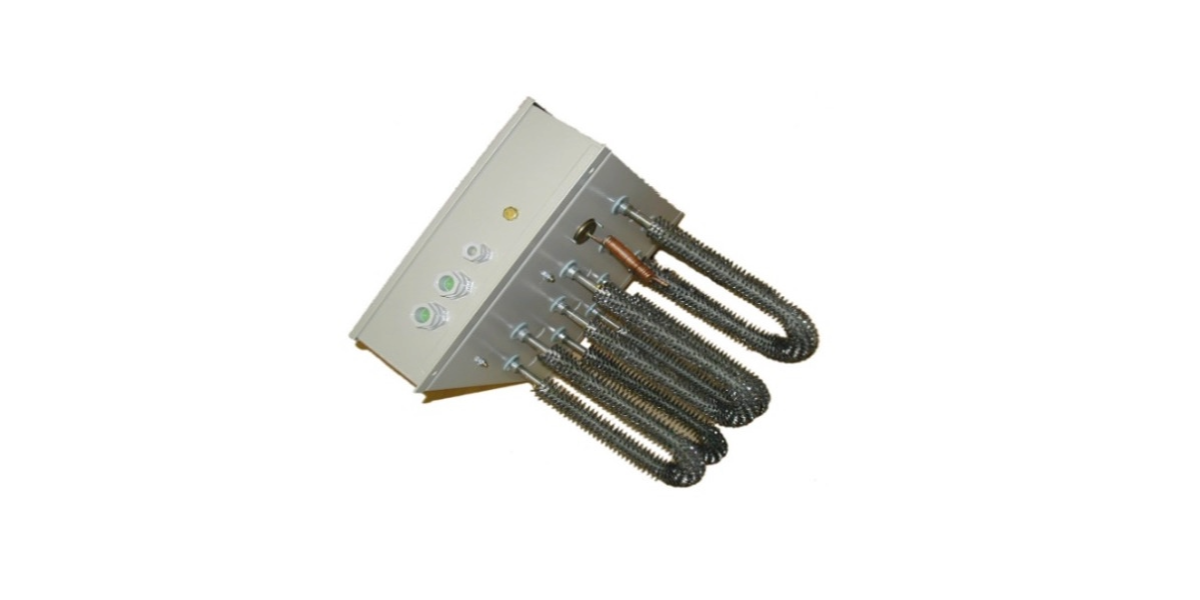

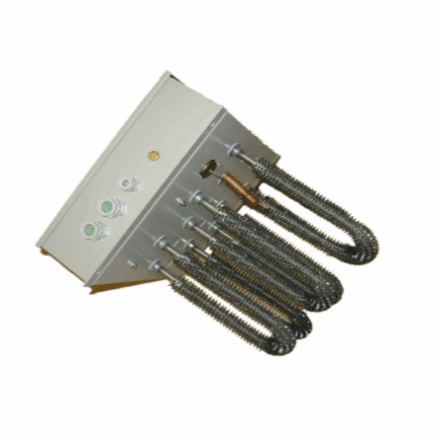

BT 540 – 12 elements – 400x400mm housing
Twelve elements, with 400mm x 400mm housing for installation into steel ducts.
Heating elements
Sheath: AISI 321, Ø10mm
Finning: AISI 430, Ø28mm helical fins
Voltage: 230 V/400 V
Power density: 8 W/cm2
Terminals: M15 zinc-plated clamping sleeves
Minimum air speed: 2m/s at 40°C max
Housing
15/10mm Stainless Steel Housing, beige colour epoxy painted
IP557 Ingress Protection
Polyamide glands for power cables
Ground screw
Safety
Manual reset safety thermostat (max 10A)
Fixed set point at 100°C (0/-16°C), 250V
Note: the bulb must be installed on the cold air side
Electrical connections
Standard “”Elntrelec”” terminals on DIN rail, cross-section according to power
