These resistance-type temperature sensors are intended for contact temperature measurement of gaseous substances. The plastic connection head is provided with a cable outlet bushing (terminal board is in the head) or a connector. The standard temperature range in which the sensors can be utilised is -50 to 100 °C. The temperature sensors can be utilised for any control systems that are compatible with sensing element output signals or output signals quoted in the table of sensing element types. Easy mounting of the temperature sensor is ensured by the unique “S head” design invented by SENSIT s.r.o.
The temperature sensors are designed to be operated in a chemically non-aggressive environment.
The temperature sensors are designed to be operated in a chemically non-aggressive environment.
Specification
Sensor type (K - with connector) |
Type of sensing element | Maximum measuring DC current | Measuring range |
---|---|---|---|
NS 110x NS 110xK |
Ni 1000/5000 | 1 mA | -50 to 100°C |
NS 111x NS 111xK |
Ni 1000/6180 | 1 mA | -50 to 100°C |
NS 112x NS 112xK |
Ni 891 | 1 mA | -50 to 100°C |
NS 310x NS 310xK |
Ni 10000/5000 | 0.3 mA | -50 to 100°C |
NS 311x NS 311xK |
Ni 10000/6180 | 0.3 mA | -50 to 100°C |
NS 113x NS 113xK |
T1 = Ni 226 | 0.7 mA | -50 to 100°C |
PTS 110x PTS 110xK |
PT 100/3850 | 3 mA | -50 to 100°C |
PTS 210x PTS 210xK |
PT 500/3850 | 1.5 mA | -50 to 100°C |
PTS 310x PTS 310xK |
PT 1000/38501 mA | 1 mA | -50 to 100°C |
HS 110x HS 110xK |
thermistor NTC 20 kΩ | 0.3 mW *) | -50 to 100°C |
*) maximum power consumption
Note: x = version A or version B
Sensor type (K - with connector) |
NS 510A NS 510AK |
NS 710x NS 710xK |
Note |
---|---|---|---|
Type of sensing element | Pt 1000/3850 | Pt 1000/3850 | |
Output signal | 4 to 20 mA | 0 to 10 V | |
Measuring ranges |
-30 to 60 °C 0 to 35 °C 0 to 100 °C 0 to 150 °C |
-30 to 60 °C 0 to 35 °C 0 to 100 °C 0 to 150 °C |
Ambient temperature around the connection -30 to 70 °C |
Power supply (U) | 11 to 30 VDC | 15 to 30 VDC | Recommended value 24 VDC |
Load resistance Rs |
150 Ω for power supply 12 VDC 700 Ω for power supply 24 VDC |
> 10 kΩ | |
Output signal - sensing elements break | > 24 mA | > 10.5 mA | |
Output signal - sensing element short | < 3.5 mA | ~ 0 V |
Note: x = version A or version B
**)According to the customer‘s requirement, it is possible to provide a customized measuring range from -40 to 150 °C; the minimum span of the range must be 35 °C (e.g. -20 to 15 °C; -30 to 80 °C)
Others Parametrs | |
---|---|
Accuracy class |
Ni sensing elements: B class, t = ± (0.4 + 0.007t), for t ≥ 0; t = ± (0.4 + 0.028|t|), for t ≤ 0 in °C; Pt sensing elements: B class according EN 60751, t = ± (0.3 + 0.005|t|) in °C NTC 20 kΩ: ± 1 °C for the range 0 to 70 °C |
Measuring error NS 510A(K), NS 710x(K) |
NS 510A ± 1 °C (based on air flow speed) NS 710A 0,6 % for range with span; min. 0,5 °C |
Sensors connection | according to the wiring diagram |
Standard length of the stem (version A) |
for resistance output and for output 0 to 10 V : 25 mm for output 4 to 20 mA : 50 mm |
Time response | τ0.5 < 9 s (in air flow at 1m s-1) – version A τ0.5 ≤ 30 s (in air flow at 1m s-1) – version B |
Recommended wire cross section – sensors with grommet | 0.35 to 1.5 mm2 |
Type of connector in the head – sensor with connector | RSFM4 - Lumberg |
Insulation resistance | > 200 MΩ at 500 V DC, 25° ± 3 °C; humidity < 85 % |
Ingress protection | IP 65 in accordance with EN 60529 |
Material of the stem | stainless steel DIN 1.4301 – version A |
Material of the connection head | POLYAMIDE |
Operating conditions |
|
Weight | approximately 0.15 kg |
*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

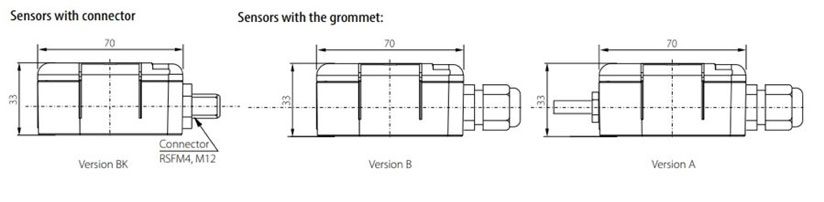

Dimensional Draft

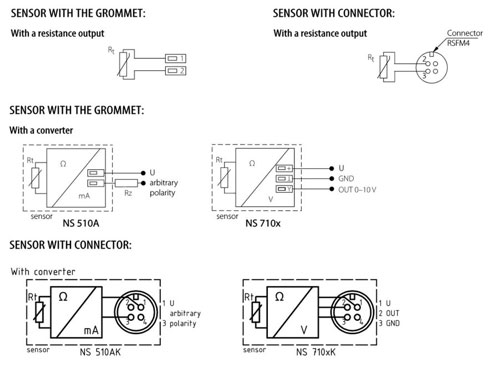

Wiring Diagram
