STH 104 Temperature and Relative Humidity with Output CAN

The STH 104 temperature and relative humidity sensor is designed to measure the temperature and relative humidity of the air in spaces protected against water.

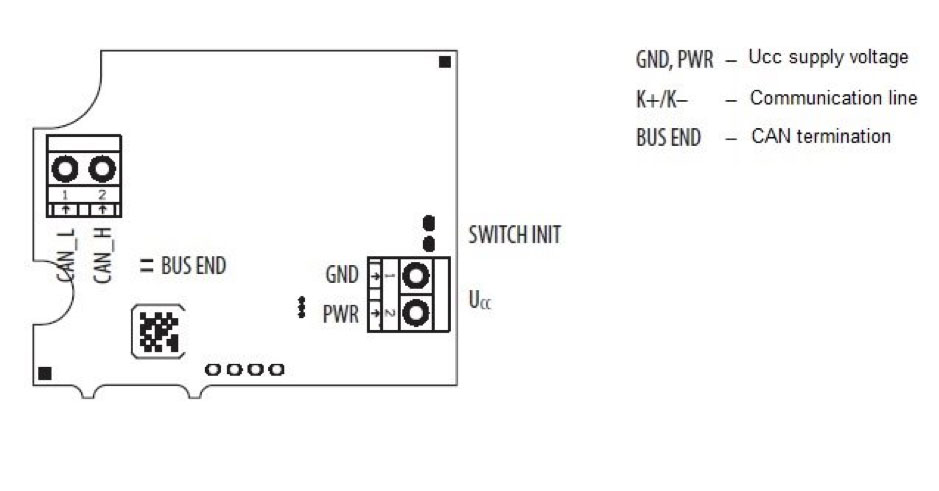

The STH 104 temperature and relative humidity sensor consists of a plastic ribbing head where a printed circuit board with the individual sensors and a converter is placed to establish a communication via the CAN bus. The temperature and relative humidity are measured by a common internal sensor whose signal is processed in a microprocessor and is converted to a CAN open output signal with CiA DS 301 specification. The sensors meet the ingress protection of IP 30 according to EN 60 529. Suitable design and high-quality material ensure that the sensor does not feel disturbing even in the interiors with high aesthetic requirements. You can choose the colour of the box white or grey.

The STH 104 temperature and relative humidity sensor is designed to be operated in a chemically non-aggressive environment; its use must be chosen regarding temperature and chemical resistance of the individual sensors. The operating conditions to establish the correct function are:

• ambient temperature in the vicinity of the sensor: -40 to 80 °C
• relative ambient humidity: 0 to 95% (non-condensing humidity)
• atmospheric pressure: 87 to 106 kPa

• Manufacturer provides EU Declaration of Conformity.
• Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.
