Remote User Interfaces

Carlton Thermal Systems stock a full range of EVCO S.p.A. stylishly designed and compact remote user interfaces for HVAC sector and OEM companies:
  • Vled 3
  • EVJ LCD
  • VGraph
  • Vroom
  • VColour
Vled 3 is a range of extremely compact remote user interfaces.

The versions with an INTRABUS proprietary port provide an effective and economical alternative for point-to-point applications.

The versions with a CAN port function as a browser for all the c-pro 3 series devices. The USB port fitted as standard enables the interface firmware to be easily updated onsite from a personal computer.
The stylish design and compact format, only 74x32 mm, make it the ideal interface for panel installation. The user interface consisting of a 2-row (4 + 4 digit) LED display, function icons and 4 capacitive touch keys, has IP65 level protection.
EVJ LCD is a range of remote user interfaces for the HVAC sector stylishly designed for easy installation into any home or business environment.

Depending on the model, the EVJ LCD interface has the following features: a built-in temperature and humidity sensor and/or a Bluetooth BLE communication module.

The versions with an INTRABUS proprietary port provide an effective and economical alternative for point-to-point applications. The versions with a CAN port function as a browser for all the c-pro 3 series devices. The USB port fitted as standard enables the interface firmware to be easily updated onsite from a personal computer.
Designed for wall installation, the EVJ LCD range can be powered by the controller or by an independent power source. The user interface consists of a backlit LCD display, function icons and 6 capacitive touch keys.

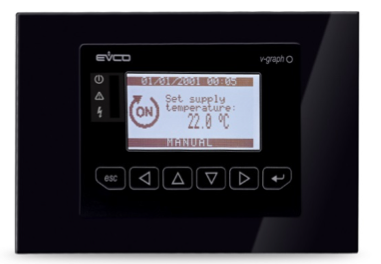

Vgraph is a range of remote user interfaces for programmable controllers belonging to the c-pro 3 series.

The user interface consists of LCD graphic display, six keys, it can be realized through the UNI-PRO 3 development environment for programmable controllers and guarantees an IP40 protection rating (IP65 in case of panel mounting with gasket 0027000007), for easy cleaning.

The remote user interfaces can easily be integrated in both residential and commercial environments; at their front it is possible to apply the EPVP plates or the plates belonging to the “Living” and the “Light” series by BTicino.
Installation is by panel or embedded (in flush box belonging to the “506e” series by BTicino or in CPVW00 wall mounting support).

The O (OEM) version has been designed for installation on a unit, panel or back-panel mounted, and it can be supplied when a minimum quantity is ordered.
Vroom is a range of remote user interfaces for programmable controllers belonging to the c-pro 3 series.

The user interface consists of a LCD graphic display, six keys, it can be realized through the UNI-PRO 3 development environment for programmable controllers and guarantees an IP40 protection rating (IP65 in case of panel mounting with gasket 0027000007), for easy cleaning.
They incorporate a temperature and humidity sensor (whose readings can be transmitted via BUS).

The remote user interfaces can easily be integrated in both residential and commercial environments; at their front it is possible to apply the CPVP plates or the plates belonging to the “Living” and the “Light” series by BTicino.

Installation is by panel or embedded (in flush box belonging to the “506e” series by BTicino or in CPVW00 wall mounting support).
Vcolor is a range of remote user interfaces for programmable controllers belonging to the c-pro 3 series.

The user interface consists of a colour touch-screen TFT graphic display, it can be realized through the UNI-PRO 3 development environment for programmable controllers and guarantees an IP40 protection rating (IP65 in case of panel mounting with gasket 0027000007), for easy cleaning.
They can work both in “browser” mode (of control devices) and in “commander” mode (getting the control devices to serve the commands coming from the interface).

The remote user interfaces can easily be integrated in both residential and commercial environments; at their front it is possible to apply the EPVP plates or the plates belonging to the “Living” and the “Light” series by BTicino.

Installation is by panel or embedded (in flush box belonging to the “506e” series by BTicino or in CPVW00 wall mounting support).

The O (OEM) version has been designed for installation on a unit, panel or back-panel mounted, and it can be supplied when a minimum quantity is ordered.
Visit our downloads page to view technical characteristics or contact our technical sales department for more information, prices or with your specifications.

Also, you can reach us on +44 (0) 1865400514
